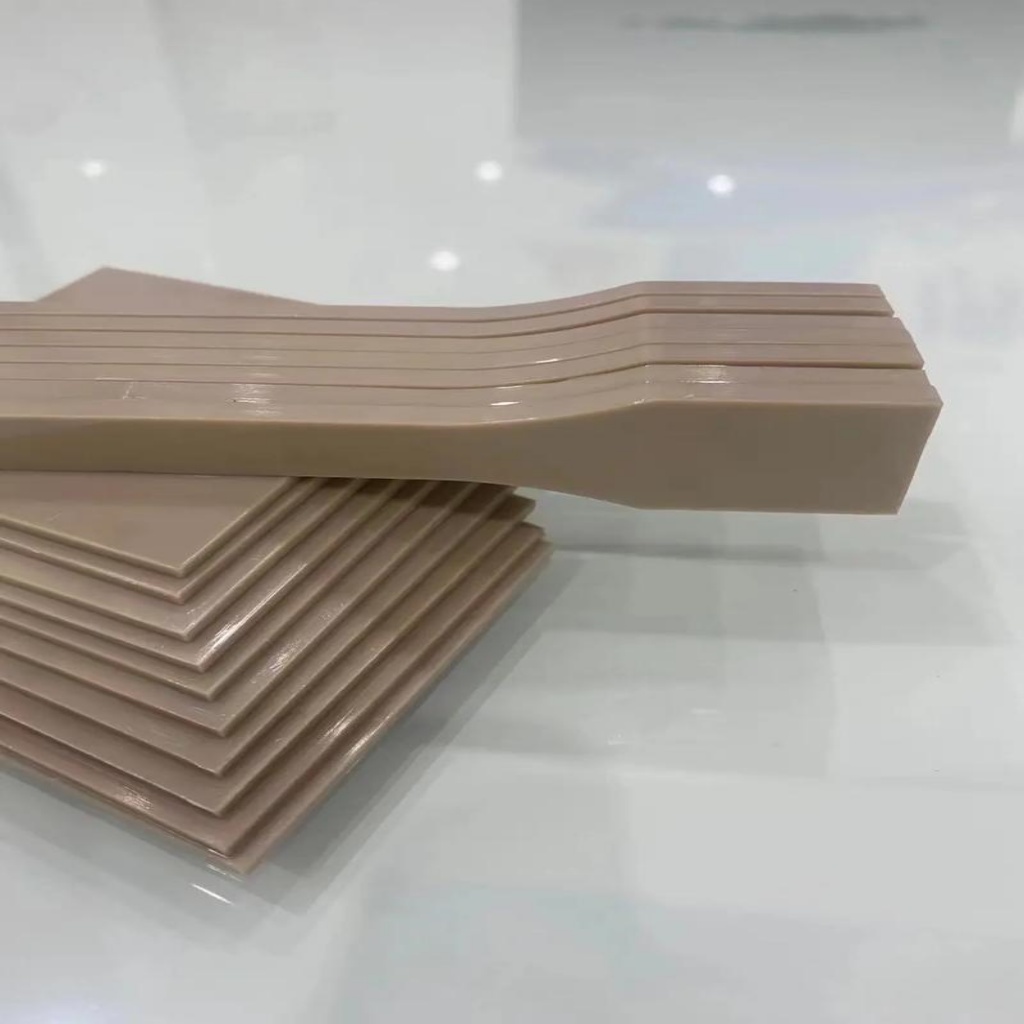

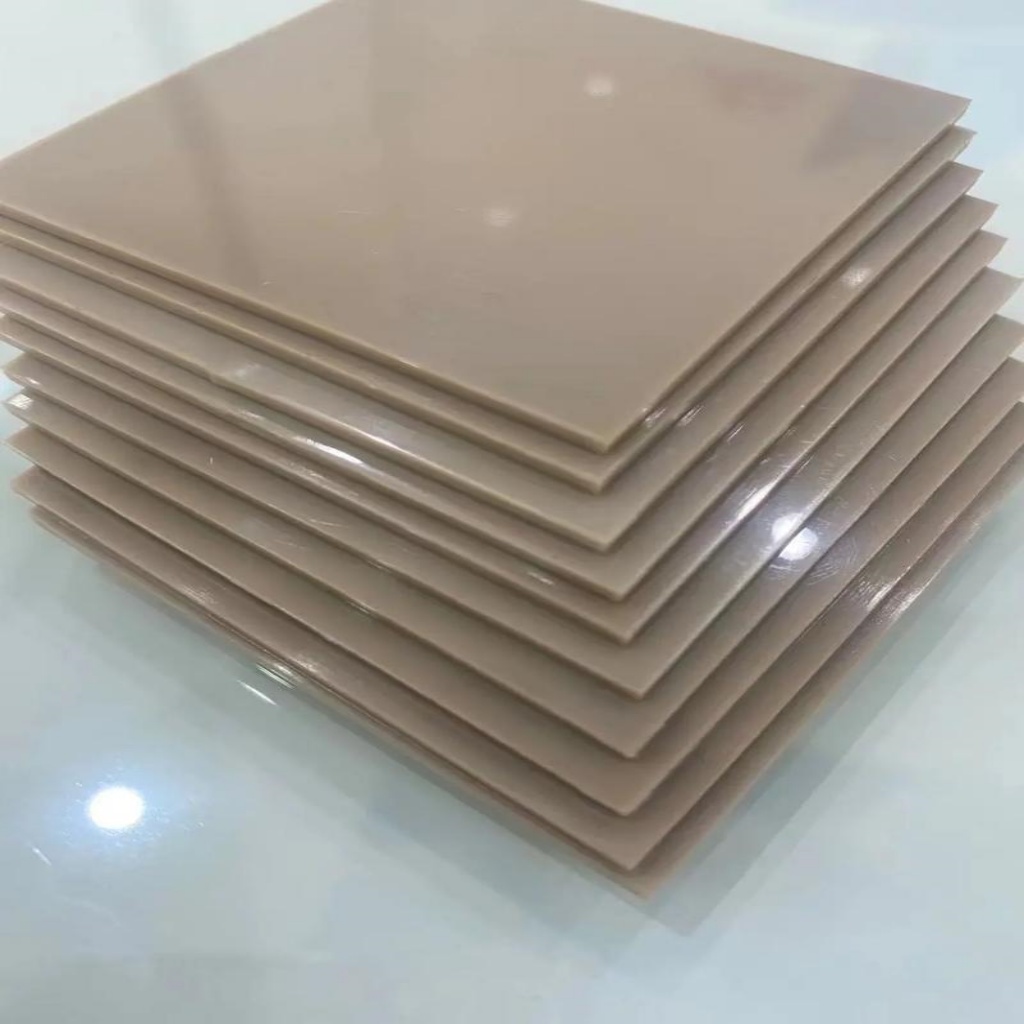

    Polyether Ether Ketone Sheet(PEEK)
    FEATURES

    1.Outstanding Chemical Resistance – PEEK sheets resist a wide range of organic and inorganic chemicals, including acids, bases, and hydrocarbons, making them ideal for harsh chemical environments.

    2.Exceptional Mechanical Strength – Provides high tensile and flexural strength, maintaining structural integrity under heavy loads and stress.

    3.High Heat Resistance – Continuous service temperature up to 250 °C, with excellent dimensional stability even in steam, hot water, and autoclave conditions.

    4.Superior Wear & Abrasion Resistance – Low friction coefficient and outstanding wear properties ensure long service life in sliding and bearing applications.

    5.Excellent Hydrolysis Resistance – PEEK sheets withstand repeated cycles of hot water and steam without degradation, making them suitable for medical and food-contact use.

    6.Good Electrical Insulation – Offers high dielectric strength and stability, ideal for electronic and semiconductor applications.

    7.Biocompatibility & Food-Safe Grades Available – Certain PEEK grades comply with FDA and EU regulations, suitable for food processing and medical devices.

    8.Premium Engineering Performance – Combines metal-like strength, high temperature capability, and chemical resistance, making it one of the top choices among advanced engineering plastics.

    inquiry
    Specifications
    Brand Name Grade Material Density (g/cm³) Color Standard Size (mm) Thickness (mm) Mechanical Properties Thermal Properties Flexural Strength Chemical Resistance Moisture Absorption Fabrication Options Packaging VST (°C) TS (MPa) IS (kJ/m²) H (Shore D) MOQ
    NMT-PEEK Virgin / Reinforced Polyether Ether Ketone (PEEK) ~1.31 Natural (beige), Black Width: 620–1000 Length: 1000–2000 5 – 50 High tensile & flexural strength, excellent wear resistance Continuous use up to 250°C, short-term up to 300°C ~170 MPa Excellent against acids, bases, solvents Very low (<0.1%) Machining, drilling, welding, thermoforming, CNC Standard export packaging with film + pallet ~230 90–100 8–12 85 Negotiable (usually 50–100kg)
    Applications

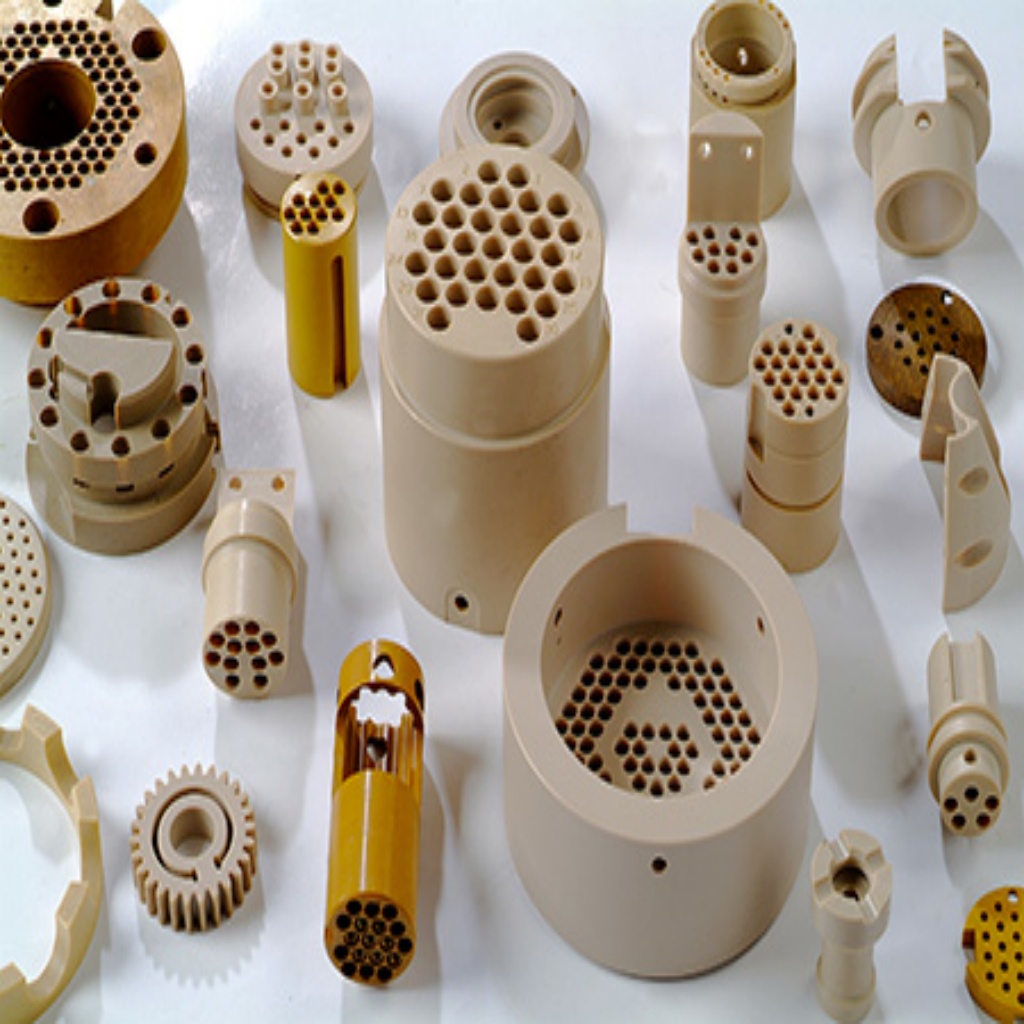

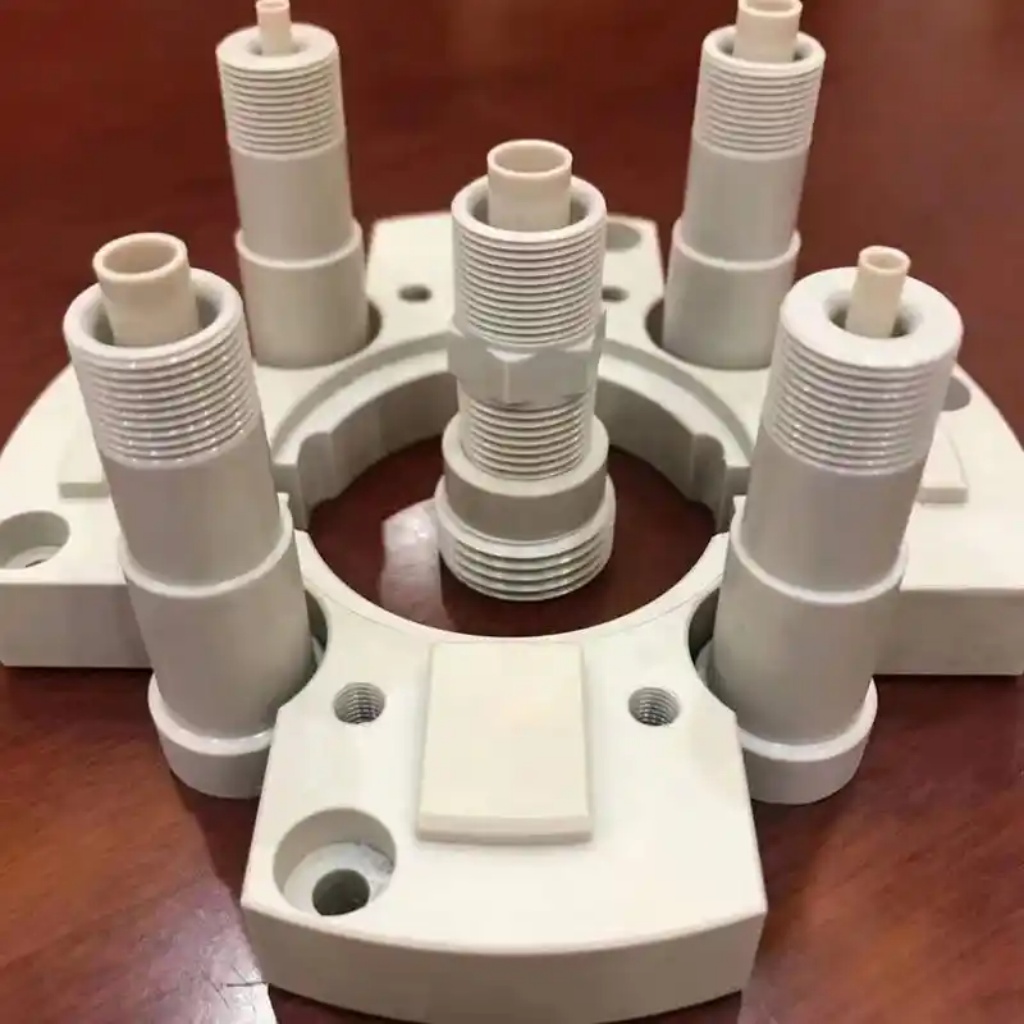

    1.Chemical Industry – Ideal for pump components, valve seats, seals, and lining parts exposed to aggressive chemicals and high temperatures.

    2.Oil, Gas & Energy – Used in compressor plates, bushings, bearings, and insulation parts where extreme mechanical strength and chemical resistance are required.

    3.Food Processing & Medical – Suitable for food-contact components, sterilization trays, medical device housings, and surgical instrument parts due to excellent hydrolysis and steam resistance.

    4.Aerospace & Defense – Lightweight yet strong materials for structural panels, brackets, insulation, and components that withstand extreme thermal and mechanical stress.

    5.Automotive & Transportation – Applied in under-the-hood components, gears, bearings, and electrical insulation parts for high-performance vehicles and electric mobility.

    6.Electronics & Semiconductor – Perfect for wafer handling trays, connectors, insulators, and precision parts requiring dimensional stability and high dielectric strength.

    7.Industrial Machinery – Used for wear-resistant bearings, bushings, gears, and seals in high-load, high-temperature operating environments.

    8.Marine & Environmental Engineering – Corrosion-resistant parts for pumps, valves, membranes, and filtration systems in harsh saltwater or chemical exposure conditions.

    Customization options

    1.Dimensions – Available in standard or tailor-made sizes with customized length, width, and thickness to meet project requirements.

    2.Colors – Natural beige or black as standard; other custom color options available upon request.

    3.Surface Finish – Smooth, precision-machined, or textured surfaces depending on application needs.

    4.Grades & Additives – Virgin PEEK, glass-fiber reinforced, carbon-fiber reinforced, bearing-grade, FDA-approved food-grade, or medical-grade.

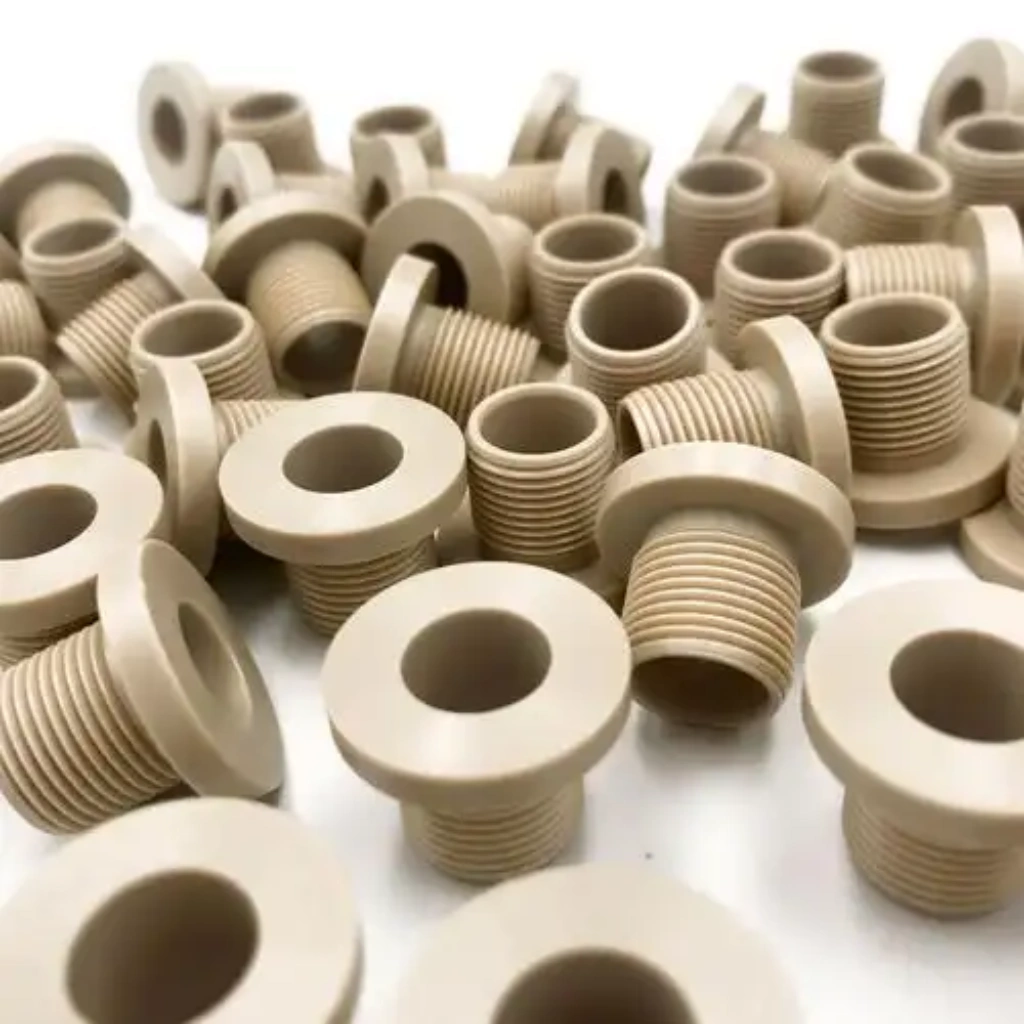

    5.Fabrication Services – CNC precision machining, drilling, milling, thermoforming, welding, and assembly into high-performance components.

    6.Edge Treatment & Printing – Precision edge finishing (deburring, chamfering), laser marking, or custom branding for industrial and medical parts.

    7.Packaging & Delivery – Protective film wrapping, export-standard pallets, and customized packaging with flexible global logistics for bulk or urgent orders.

    DOWNLOADS
    • Q&A
      Q
      What is PEEK plastic sheet and why is it considered a high-performance material?

      PEEK (Polyether Ether Ketone) is a high-performance engineering plastic known for its outstanding chemical resistance, high strength, and ability to withstand continuous use temperatures up to 250 °C. It is widely used in aerospace, medical, and semiconductor industries.

      Q
      How does PEEK compare with other plastics like PP, PVC, or POM?

      Unlike common plastics, PEEK offers metal-like strength, superior wear resistance, and high heat tolerance. While PP or PVC are cost-effective for general use, PEEK is chosen for demanding environments where reliability and durability are critical.

      Q
      Can PEEK sheets be used in food or medical applications?

      Yes. FDA- and EU-compliant food-grade and medical-grade PEEK sheets are available. They are biocompatible, resistant to repeated steam sterilization, and safe for direct food or medical contact.

      Q
      Is PEEK easy to machine or fabricate?

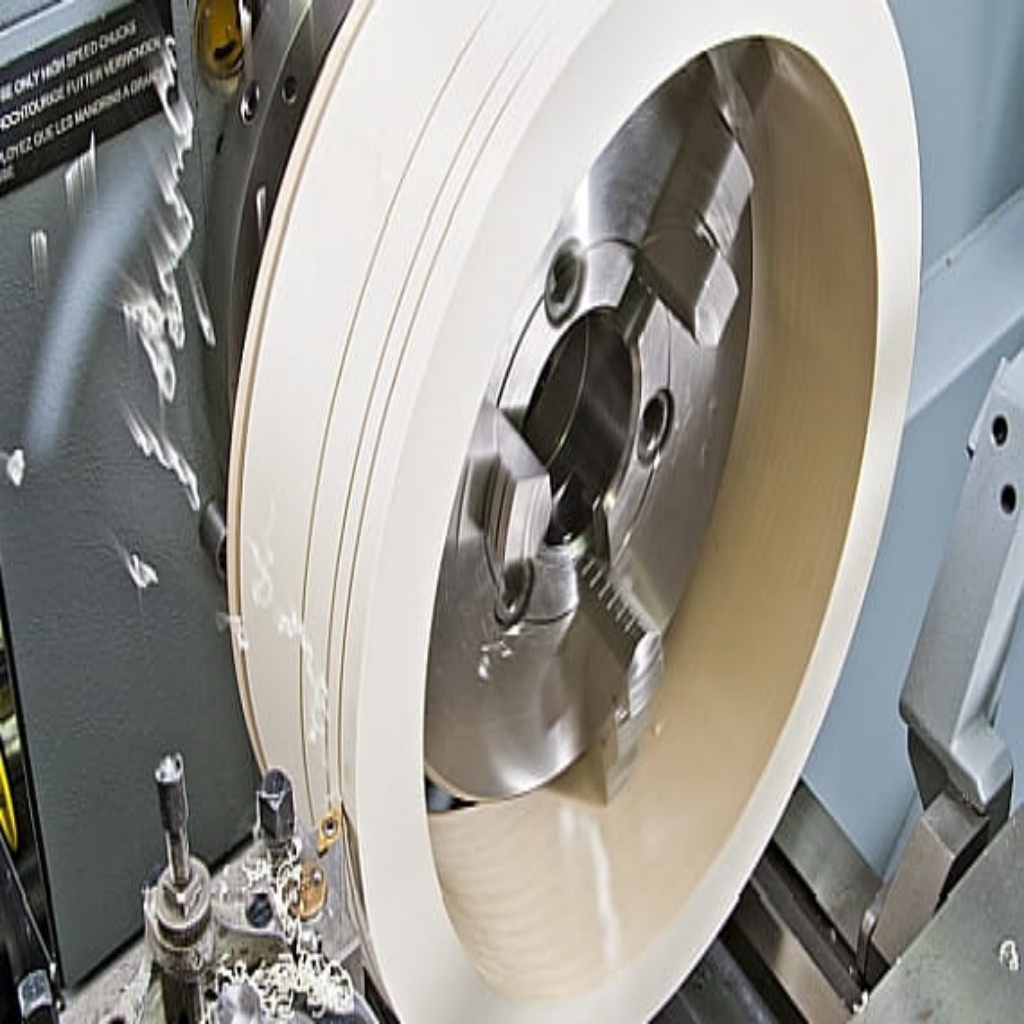

      PEEK sheets can be CNC machined, drilled, milled, or thermoformed into complex components. It offers excellent dimensional stability and is often used for precision parts.

      Q
      What colors and sizes are available for PEEK sheets?

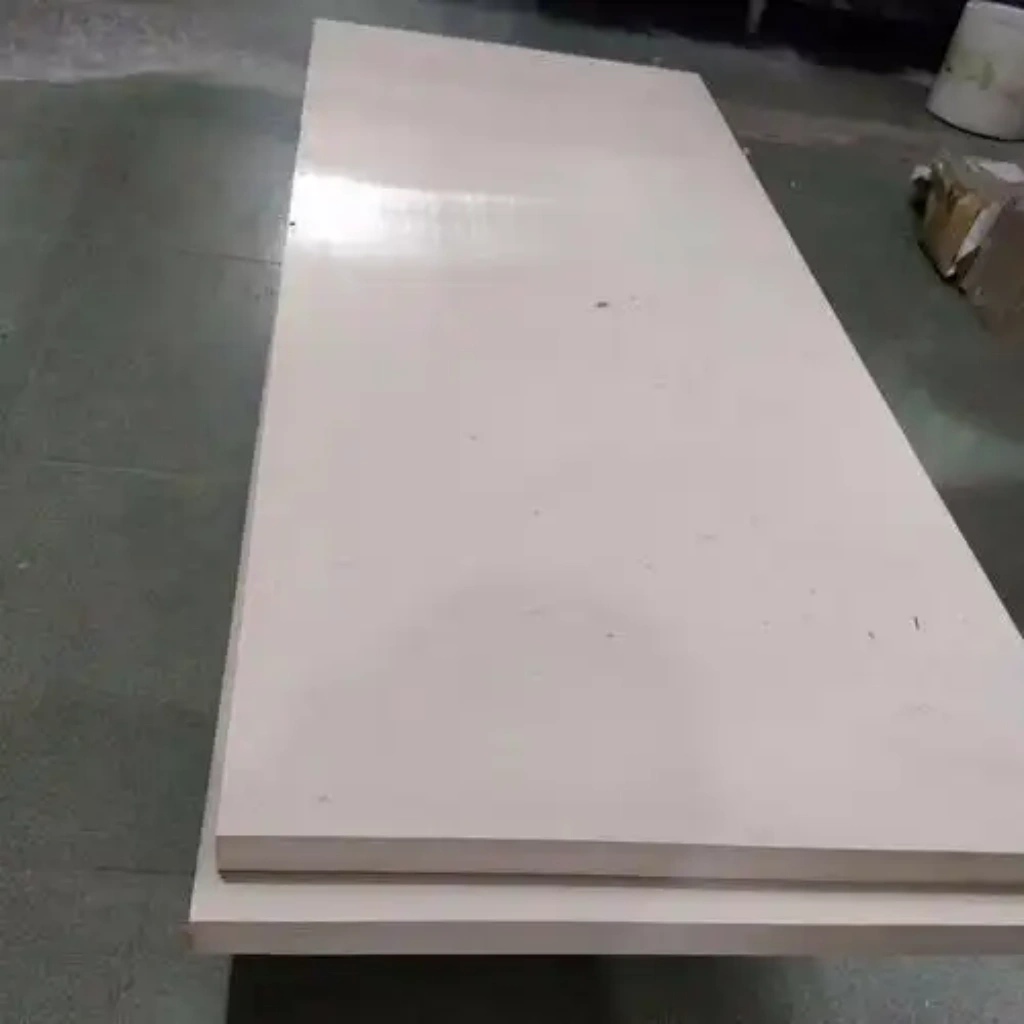

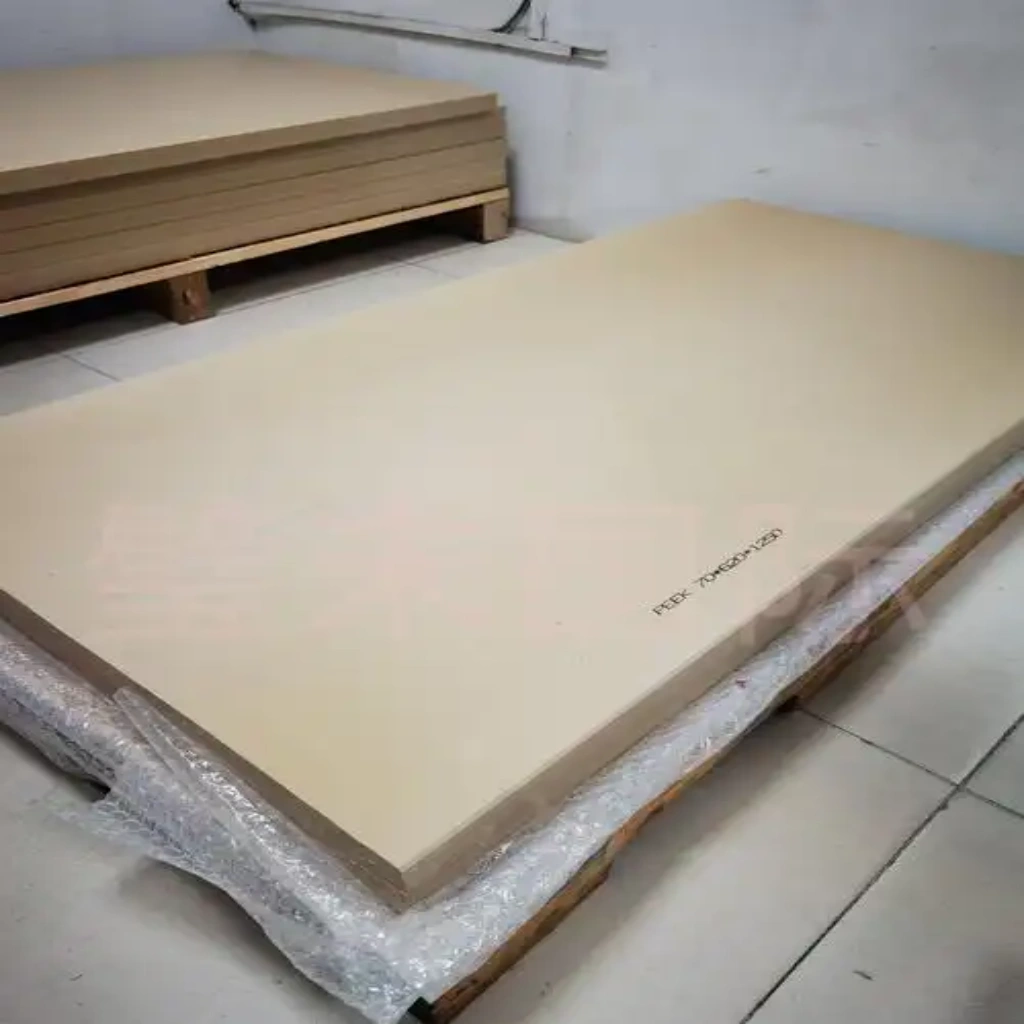

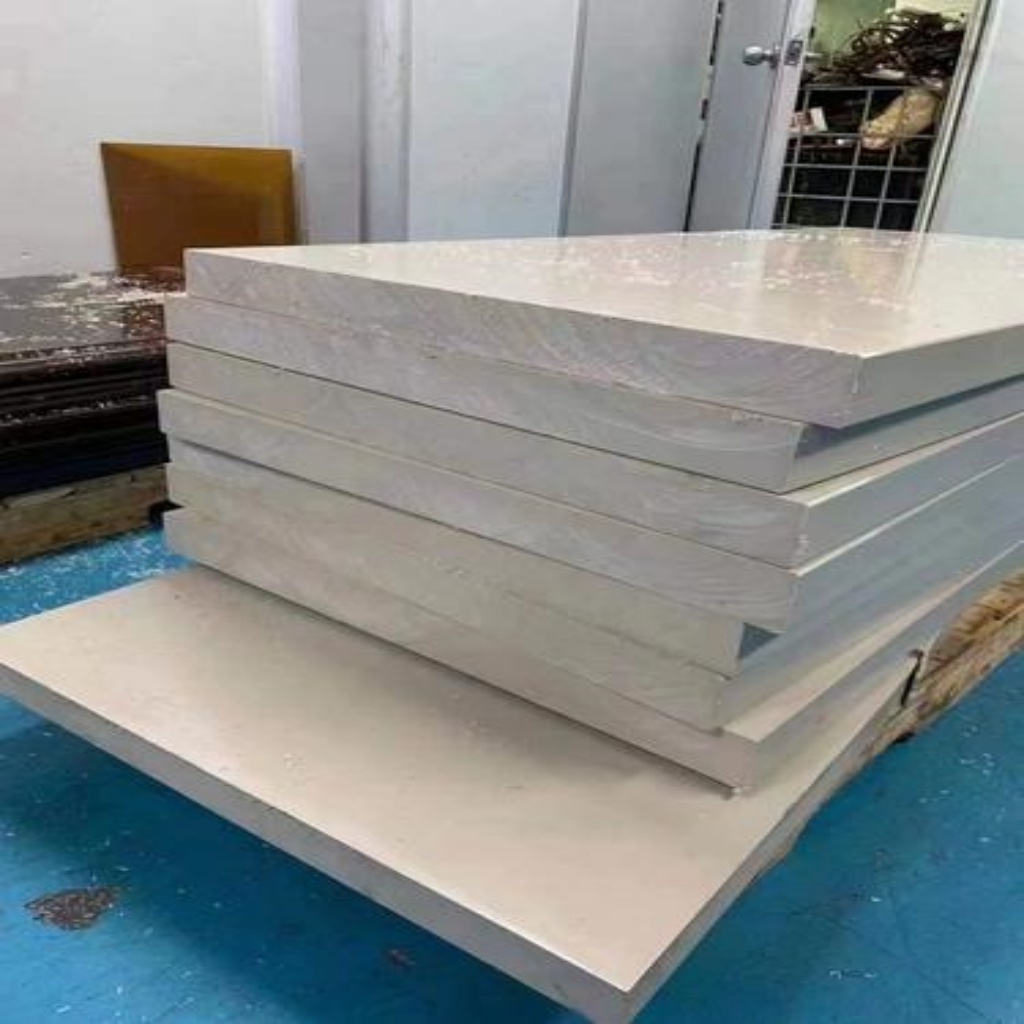

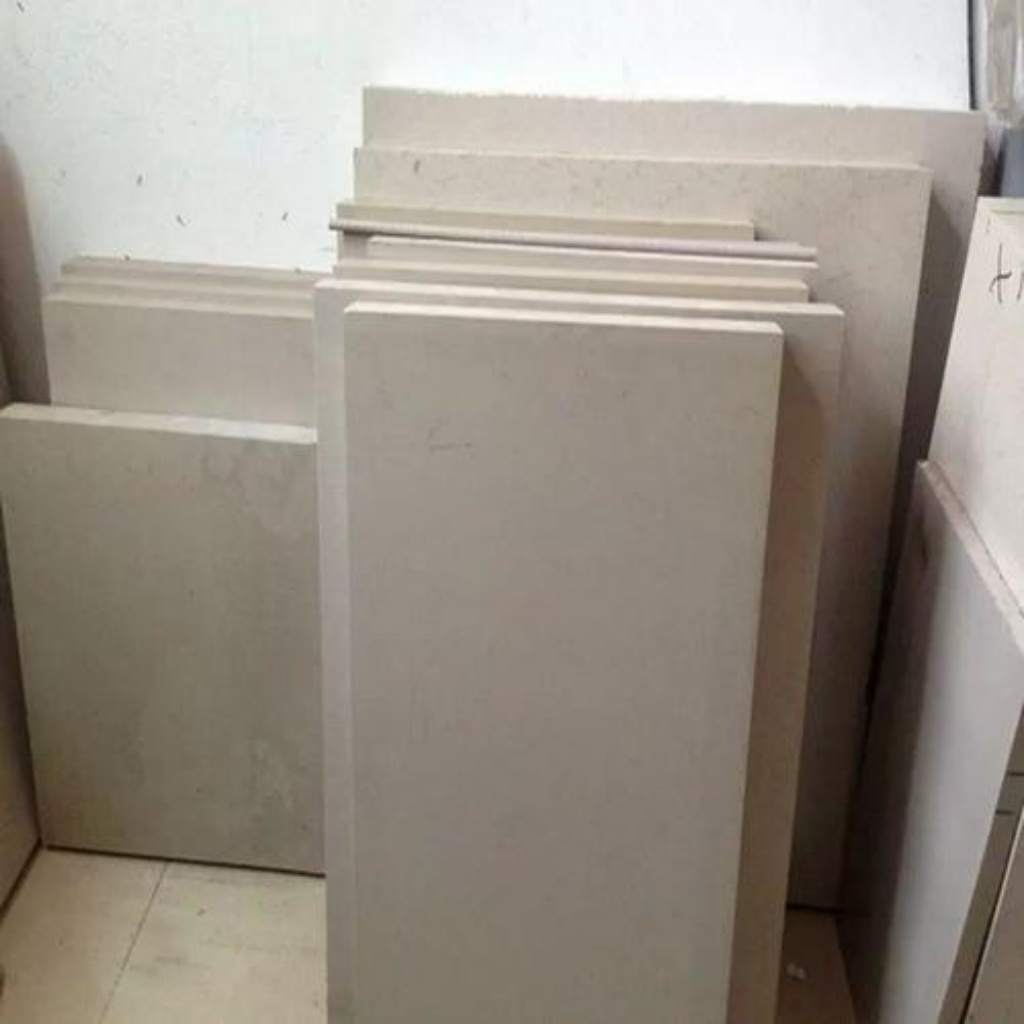

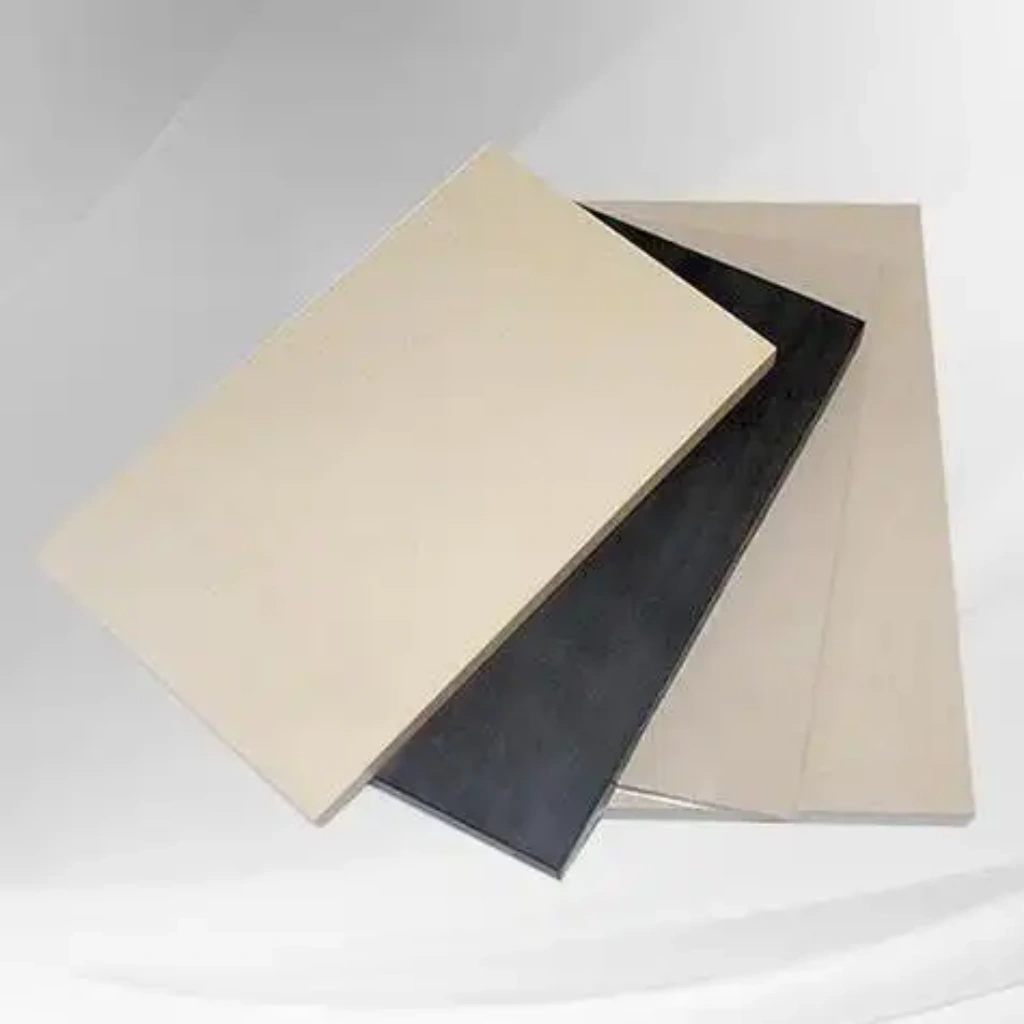

      Standard colors are natural beige and black. Sheets are typically supplied in thicknesses from 5 mm to 50 mm, with custom dimensions available upon request.

      Q
      What industries benefit the most from PEEK sheets?

      PEEK is widely used in aerospace, automotive, oil & gas, semiconductor, food processing, and medical industries—especially in applications requiring high performance under extreme conditions.

      Q
      Why is PEEK more expensive than other plastics?

      PEEK is a premium engineering material that combines high thermal stability, excellent mechanical strength, and chemical resistance. Its production is complex, but its long lifespan and performance often reduce total cost of ownership.
