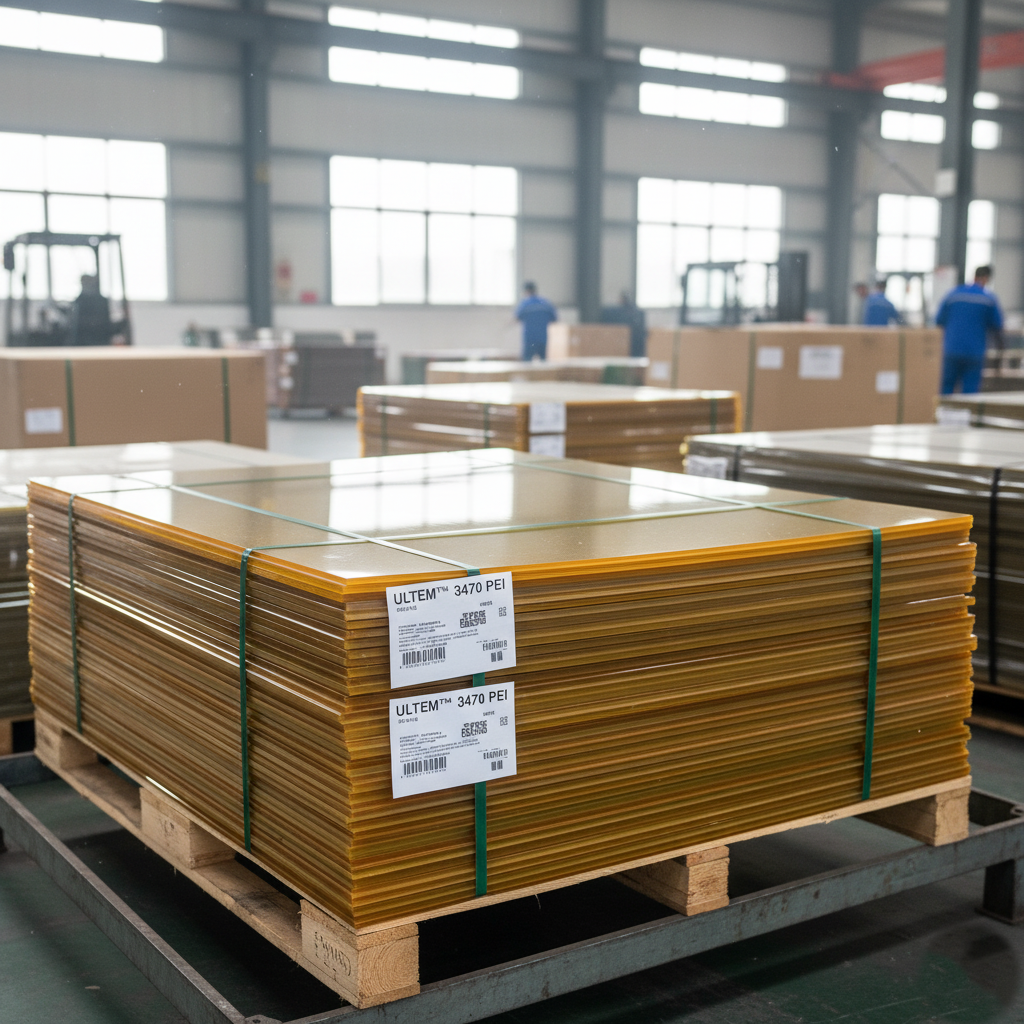

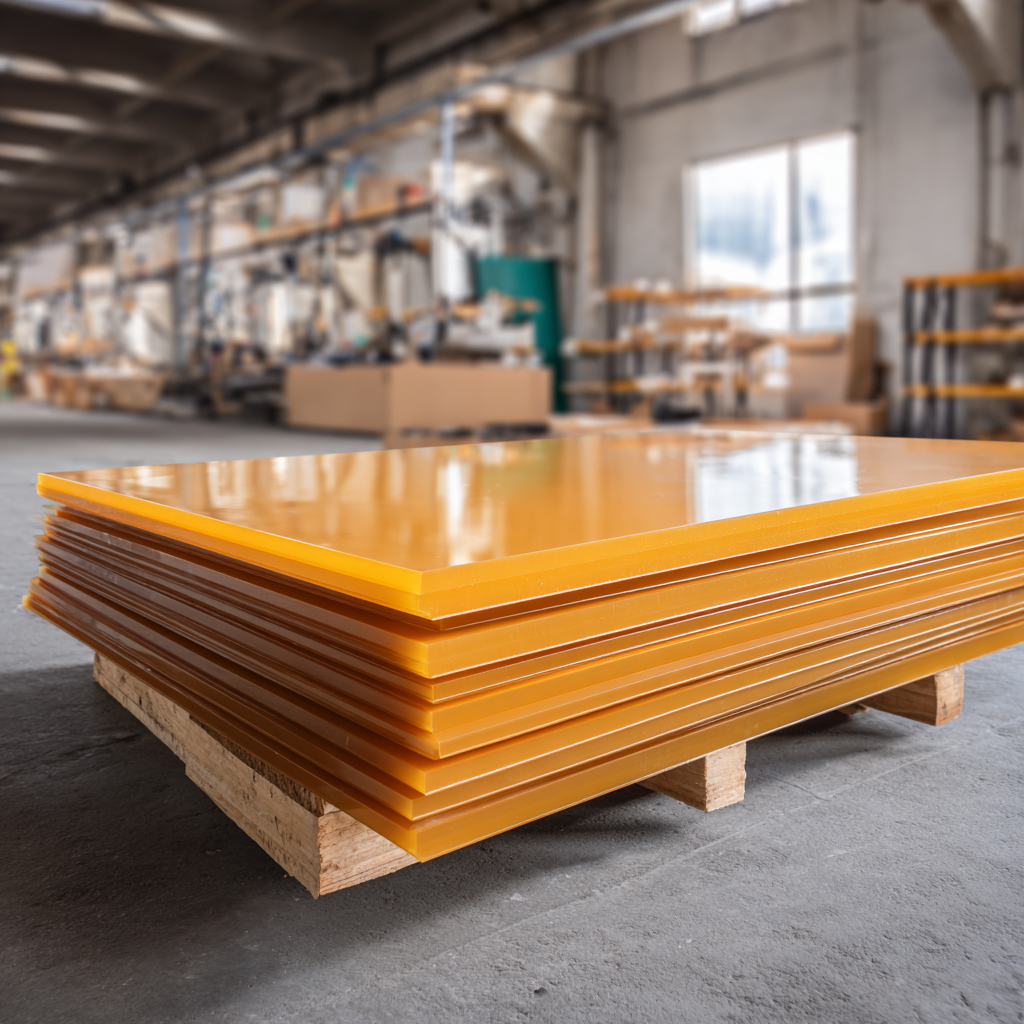

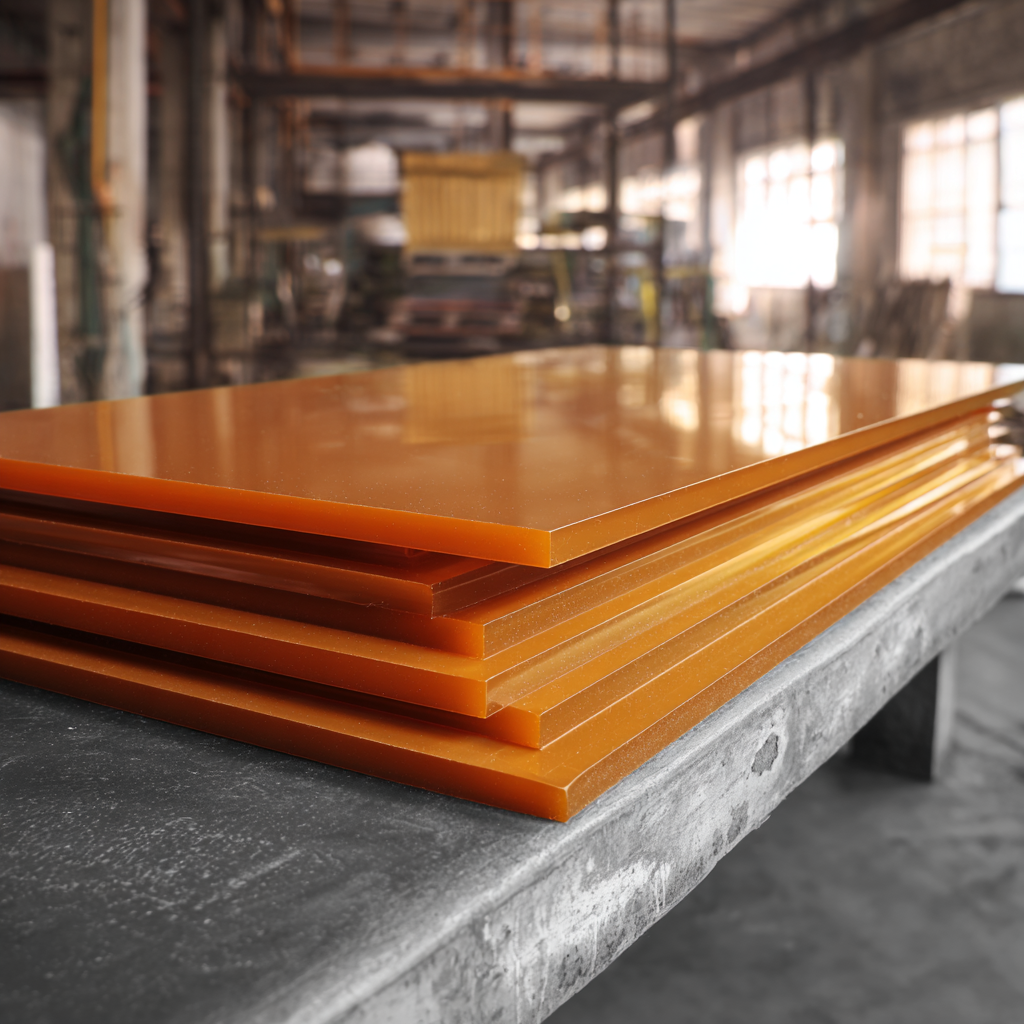

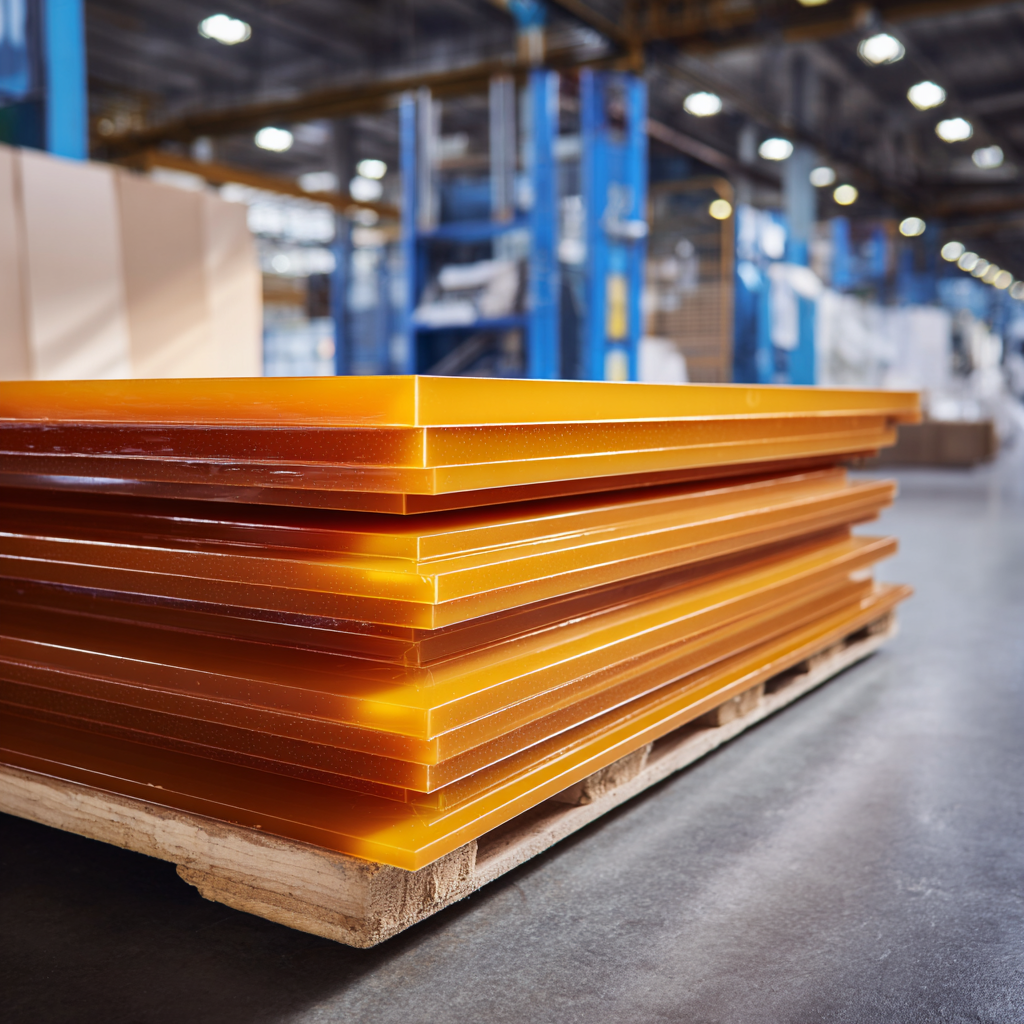

    Polyetherimide Sheet(PEI )
    FEATURES

    1.Excellent Chemical Resistance – PEI sheets can withstand strong acids, alkalis, and a wide range of organic solvents, making them ideal for chemical processing, storage, and high-corrosion environments.

    2.High Impact Strength – Lightweight yet tough, PEI sheets offer excellent resistance to impact and mechanical stress.

    3.Lightweight with High Durability – Lower density ensures easy handling and reduced transportation costs without compromising strength or longevity.

    4.Outstanding Heat Resistance – Maintains mechanical properties at temperatures up to approximately 170–180°C, suitable for hot water, steam cleaning, and high-temperature applications.

    5.Low Moisture Absorption – Minimal water absorption guarantees dimensional stability and consistent performance in humid or wet environments.

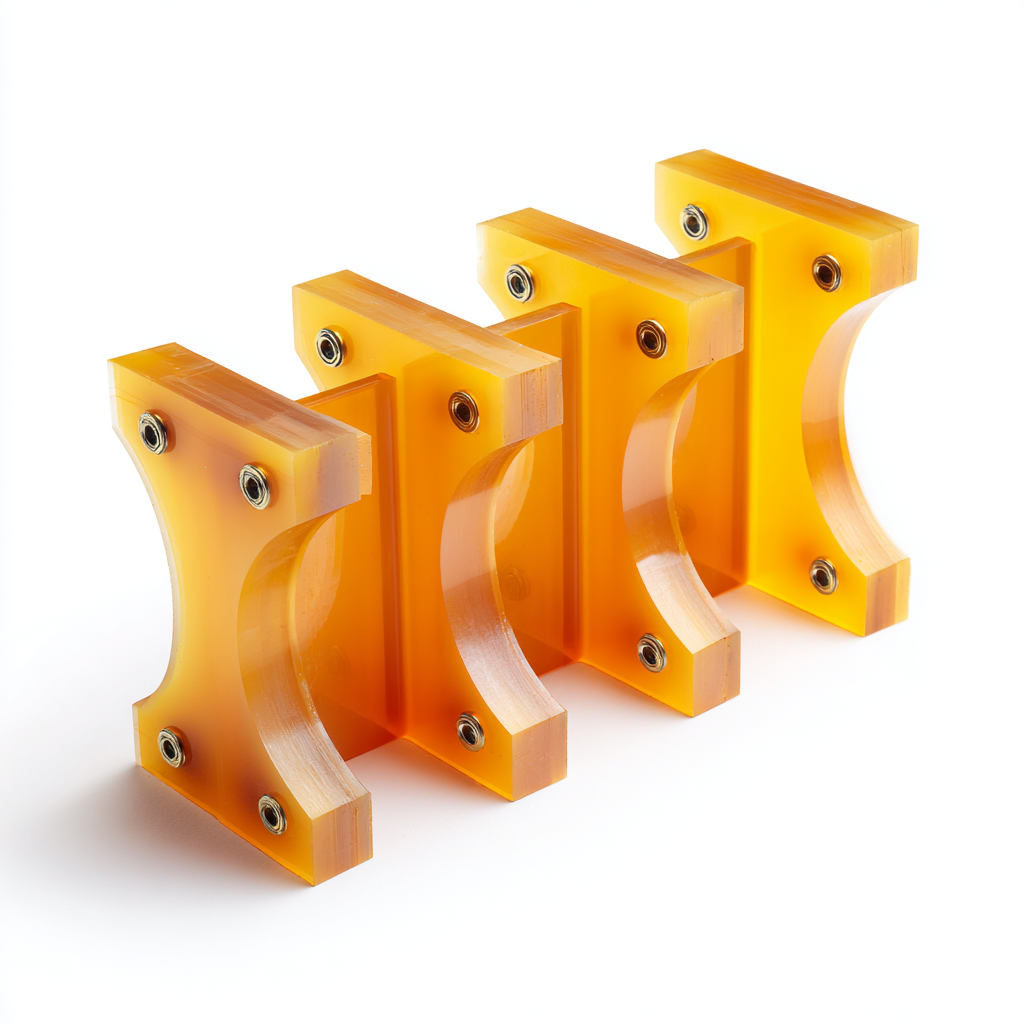

    6.Excellent Machinability and Weldability – Easily cut, fabricated, and thermally welded into custom parts, components, or tanks.

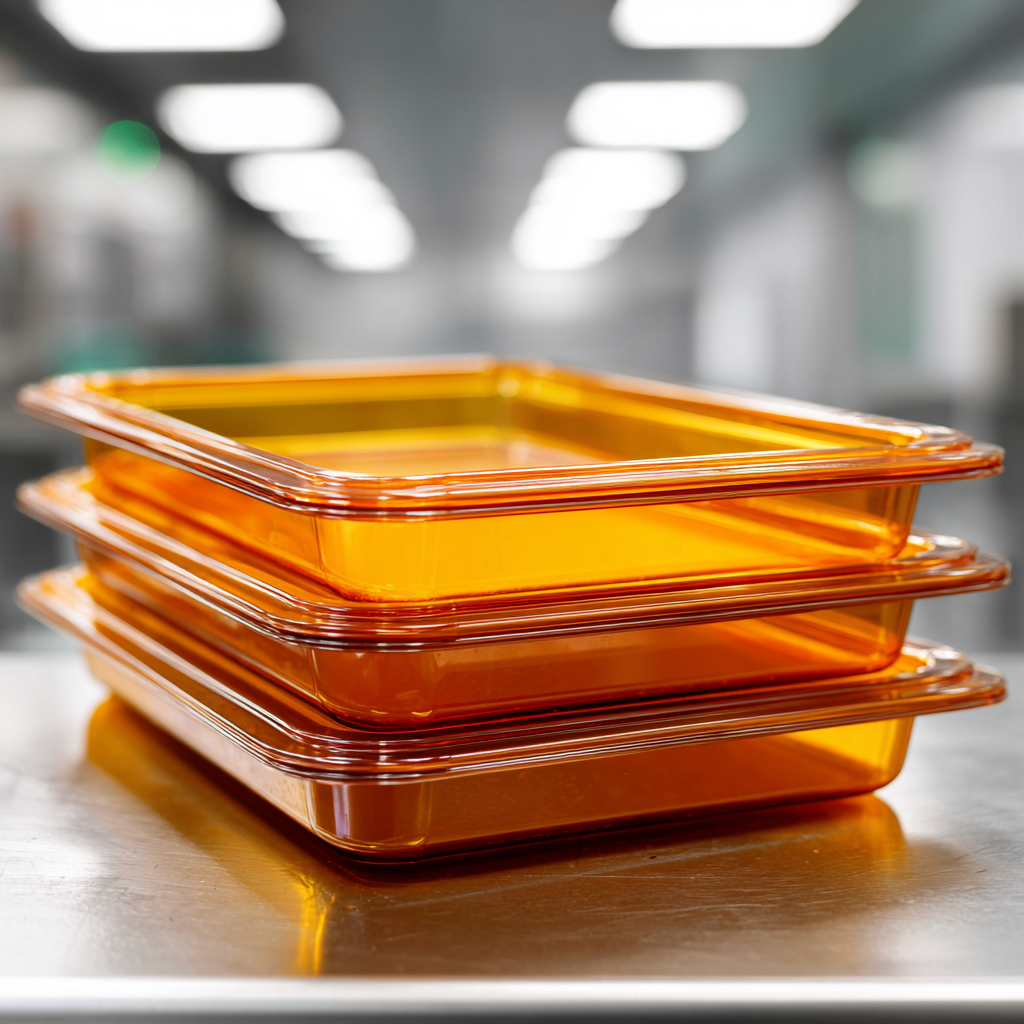

    7.Non-Toxic & Food-Safe – Safe for various food-contact applications, providing reliable hygiene performance.

    8.Cost-Effective Performance – Combines chemical resistance and durability at a competitive price compared with other high-performance engineering plastics.

    inquiry
    Specifications
    Brand Name Size Thickness Color Density Heat resistance (continuous) Heat resistance (short-term) Glass transition temperature Linear thermal expansion coefficient
    (average 23~100℃)
    Average 23–150℃ Flammability(UI94) Tensile modulus of elasticity Dipping into water at 23℃ for 24h Dipping into water at 23℃ Bending tensile stress/ Tensile stress off shock Breaking tensile strain Compressive stress of normal strain-1%/2% Pendulum gap impact test Rockwell hardness Dielectric strength Volume resistance Surface resistance Relative dielectric constant-100HZ/1MHz Critical tracking index(CTI)
    NMT-PEI 610x1220mm 6–50mm Amber 1.27 g/cm3 170℃ 200℃ 215℃ 45×10-6m/(m.k) 45×10-6m/(m.k) V-0 3400MPa 0.26 1.35 105/- Mpa >10% 25/49 MPa 3.5 KJ/m2 M114 30 kv/mm ≥10 18Ω×cm ≥10 17Ω×cm 3/3 175
