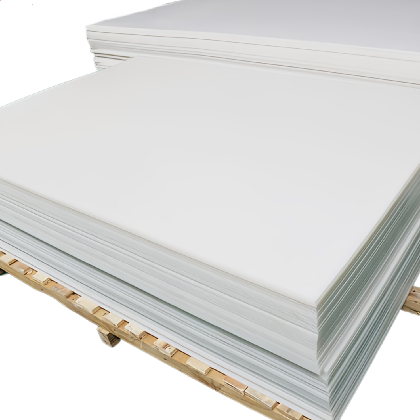

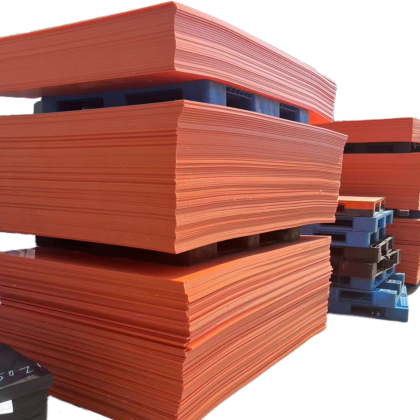

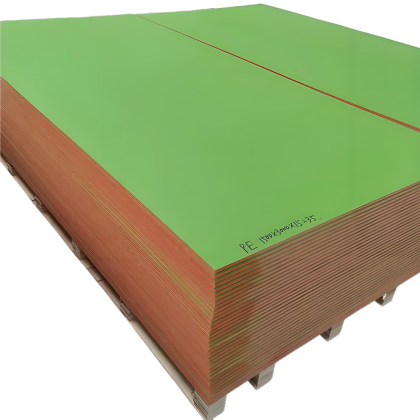

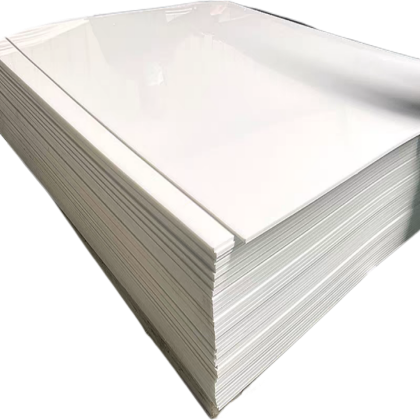

Polyethylene Board(PE)

Polyethylene Board (PE)

FEATURES

1.Excellent Chemical Resistance – Highly resistant to acids, alkalis and many solvents, ideal for chemical storage and processing.

2.Outstanding Impact Strength – Tough and resilient even at low temperatures.

3.Lightweight & Low Density – Easy to handle, transport and install compared with heavier materials.

4.Low Moisture Absorption – Maintains dimensional stability and performance in humid or wet conditions.

5.Good Wear & Abrasion Resistance – Suitable for sliding, lining and high-wear applications.

6.Excellent Electrical Insulation – Naturally non-conductive, making it safe for various electrical or industrial uses.

7.Food-Grade Options Available – Non-toxic and approved for direct contact with food in many regions.

8.Easy Fabrication – Can be cut, welded, machined and thermoformed into custom shapes.

9.Cost-Effective – Offers a balance of durability and affordability compared to other plastics.

inquiry

Specifications

Brand Name

Material

Density

Color

Standard size

Width (mm)

Length(mm)

Thickness(mm)

Surface Finish

Mechanical Properties

Thermal Properties

Chemical Resistance

Moisture Absorption

Fabrication Options

Packaging

Minimum Order Quantity (MOQ)

NMT-PE

Eco-friendly Polyethylene

0.94~0.96g/cm³

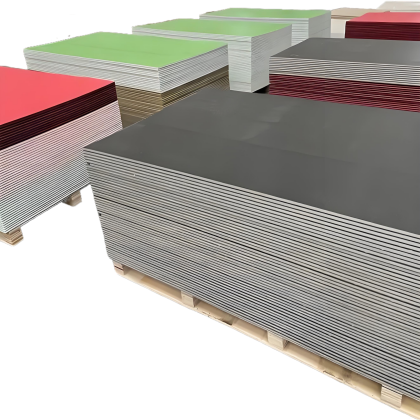

White, Blue, Black, Grey, Or Customized

1220mm x 2440mm(4’x8′, 48″ x 96″)

Can be customized, Max: 3000mm

Customized

2-200mm

Smooth, Matte, Textured, Embossed

Tensile Strength: 20 – 30 MPa
Impact Strength: 80 – 100 kJ/m²
Hardness (Shore D): 55 – 60

Service Temp: -50 to 80 °C, Heat Deflection Temp: 80 °C
Coefficient of Thermal Expansion: 0.10 – 0.15 mm/m°C

Resistant to acids, alkalis, most solvents

<0.01%

Cutting, Welding, Bending, Thermoforming, CNC Machining

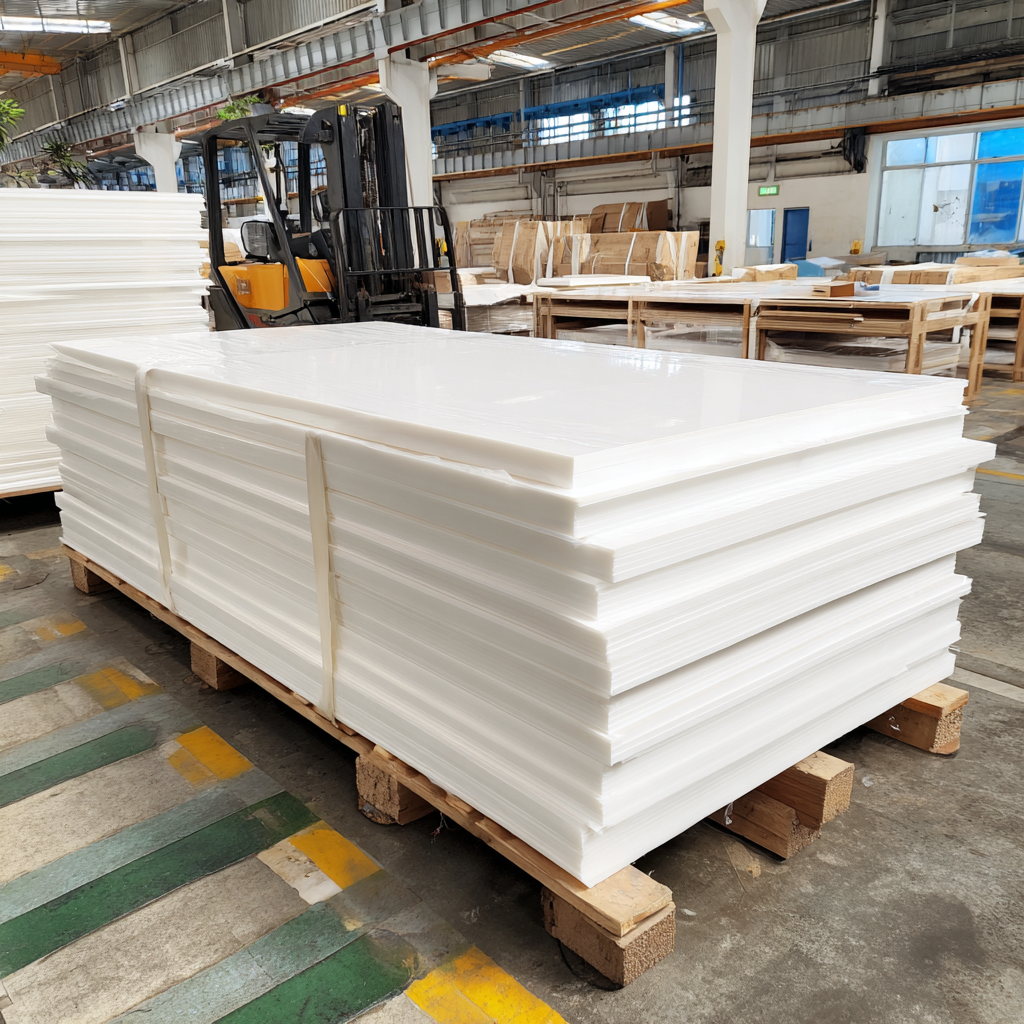

Palletized, Film-wrapped, Export-ready wooden boxes or cartons

25.1MPa

8.7kJ/m²

500 kg / 50 sheets

Applications

1.Chemical Industry – Storage tanks, chemical liners, ducts, and protective barriers due to excellent chemical resistance.

2.Food Processing & Packaging – Cutting boards, food containers, trays, and production surfaces; FDA and EU food-grade options available.

3.Water Treatment & Environmental – Wastewater tanks, scrubbers, piping, and other components in water treatment facilities.

4.Construction & Infrastructure – Protective panels, wall cladding, insulation layers, and flooring underlays.

5.Automotive & Transportation – Lightweight interior panels, protective covers, battery trays, and vehicle components.

6.Industrial & Machinery – Wear strips, guides, chutes, and liners for equipment handling bulk materials.

7.Laboratory & Medical Equipment – Trays, racks, housings, and chemical-resistant surfaces for labs.

8.Advertising & Signage – Printable boards for display panels, exhibition stands, and point-of-sale signage.

Polyethylene Putty Scraper
Polyethylene wagon matting
Polyethylene workbench
Polyethylene Pipeline
Polyethylene Chain Rail
Polyethylene Roadbed

Customization options

1.Dimensions – Cut-to-size sheets with customized length, width, and thickness according to project requirements.

2.Colors – Standard colors (white, black, grey, blue, green) or custom color matching.

3.Surface Finish – Smooth, matte, textured, or embossed finishes to meet functional or aesthetic needs.

4.Grades & Additives – Standard PE, UV-stabilized, flame-retardant, antistatic, reinforced, or food-grade sheets depending on application.

5.Fabrication Services – CNC cutting, welding, bending, thermoforming, and assembly into tanks, trays, or components.

6.Edge Treatment & Printing – Deburred edges, rounded corners, or screen/UV printing for branding or signage purposes.

7.Packaging & Delivery – Tailored packaging (pallets, film wrap, cartons) and flexible delivery options for bulk orders.

DOWNLOADS

Q&A

Q

What is PE (Polyethylene) sheet and what are its main types?

PE sheet is a versatile thermoplastic known for its chemical resistance, low moisture absorption, and excellent impact strength. The most common types include HDPE (High-Density Polyethylene), LDPE (Low-Density Polyethylene), and UHMWPE (Ultra High Molecular Weight Polyethylene). HDPE sheets are harder and stiffer, suitable for structural parts, while LDPE sheets are softer and more flexible. UHMWPE sheets offer superior abrasion resistance and low friction, ideal for industrial applications.

Q

What are the typical sizes, thicknesses, and colors of PE sheets?

PE sheets are available in standard sizes like 1000×2000 mm and can be custom-cut to specific dimensions. Thickness ranges from 2 mm to 200 mm depending on the type. Standard colors include black, white, and natural, with custom colors available on request.

Q

How do you ensure the quality of your plastic sheets?

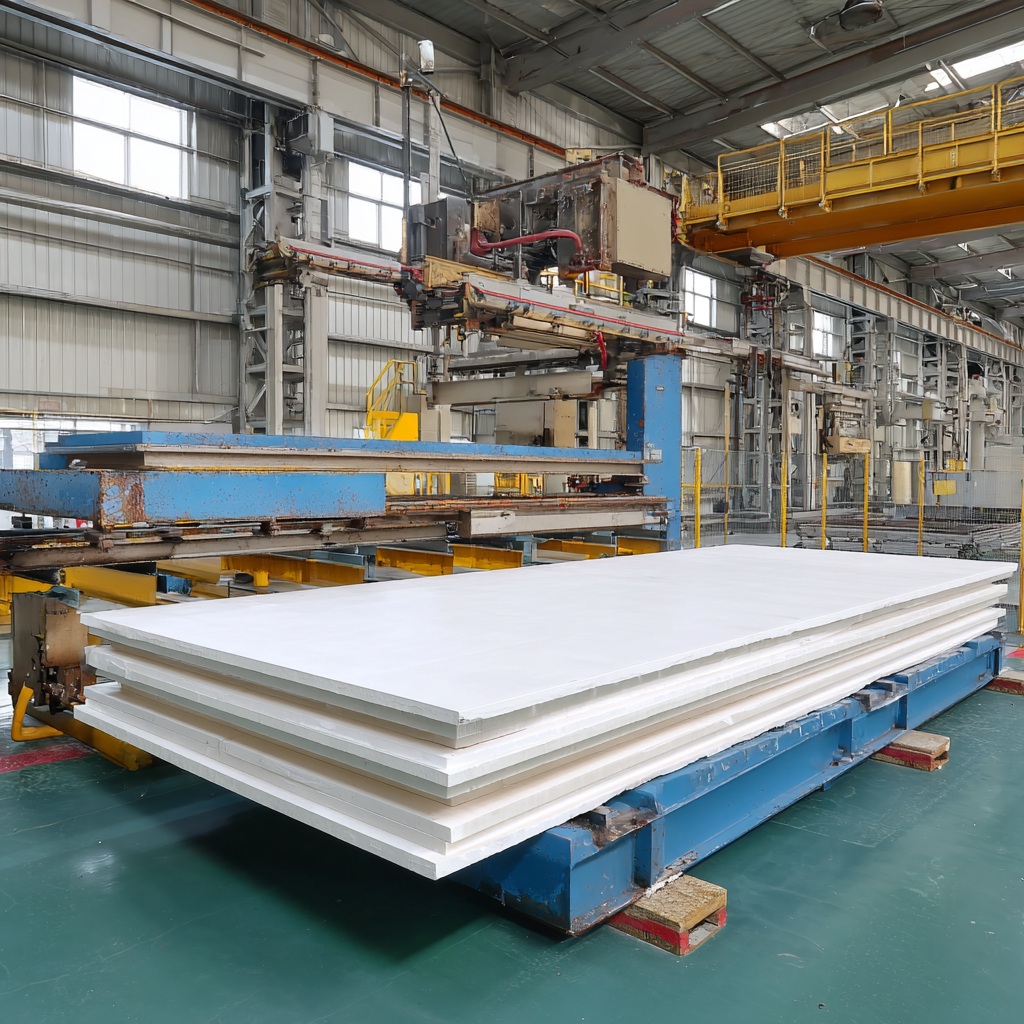

We have a strict quality control system. We start by sourcing high-quality raw materials. For example, our polyethylene sheets are made from brand new polyethylene raw materials from Sinopec, PetroChina and other top suppliers. During the production process, we use advanced production processes and equipment, and each production line is closely monitored by professional staff. Before leaving the factory, the products are thoroughly tested according to relevant standards, including tensile, impact and flexural strength tests, to ensure the quality of each polyethylene sheet.

Q

What is the working temperature range for PE sheets?

Standard PE sheets can operate continuously between –40 °C and +80 °C, with short-term exposure up to +80 °C. UHMWPE and HDPE offer higher impact and wear resistance even at low temperatures, making them suitable for cold environments or high-load applications.

Q

Can PE sheets be machined or fabricated?

Yes, PE sheets are easy to cut, drill, mill, weld, and thermoform. They can be fabricated into components like liners, wear strips, conveyor parts, chemical tanks, and food-contact surfaces. Special care should be taken to avoid overheating during machining, as it can slightly deform the material.

Q

Is PE safe for food contact?

FDA-compliant grades of PE are available, making them safe for direct food contact. Applications include cutting boards, food conveyors, guides, and rollers. PE is non-toxic, resistant to most chemicals, and easy to clean, ensuring safety and hygiene in food-processing environments.

Q

What are the main advantages of PE sheets?

1.Chemical and corrosion resistant – withstands acids, alkalis, and most solvents

2.Lightweight and impact resistant – ideal for structural and mechanical parts

3.Low moisture absorption – prevents swelling or distortion in humid environments

4.Excellent wear and abrasion resistance – especially for UHMWPE

5.Easy to machine and fabricate – customizable for various industrial, food, and medical applications

Q

What industries commonly use PE sheets?

PE sheets are widely used in industrial, food processing, chemical, marine, and packaging industries:

1.Industrial: wear strips, conveyor components, liners

2.Chemical: tanks, pipe supports, corrosion-resistant components

3.Food & Packaging: cutting boards, conveyor guides, FDA-compliant surfaces

4.Marine: fenders, dock bumpers, sliding surfaces
