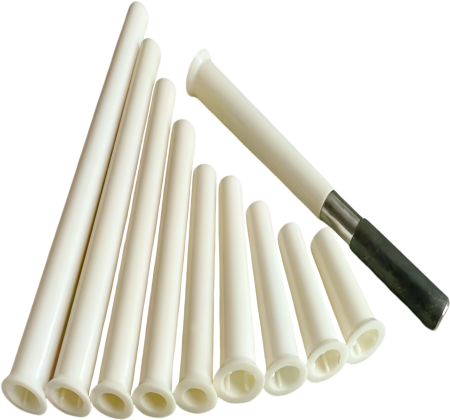

    Tapered Casing
    FEATURES

    1.Tapered design advantage

    The shape of one end is big and one end is small, which is easy to install and dismantle.

    2.Strong adaptability

    Complete specifications, can be adapted to a variety of different sizes of connecting parts, high flexibility.

    3.Good durability

    Resistant to corrosion and abrasion, it can be used for a long time in the complex building environment.

    4.Strong reusability

    ABS material can be reused up to 30 times or more, POM material can be reused up to 60 times or more, and it can be recycled after use, which greatly saves the project cost.

    inquiry
    Parameter
    Material POM/ABS
    Operating temperature -40°C – 100°C
    Specification 100mm/120mm/150mm/160mm/180mm/200mm/220mm/240mm/250mm/300mm/350mm
    Applications

    1. Template connecting and fixing

    Tapered Casing is used to connect the wooden formwork or aluminum formwork to form a solid formwork system, ensure the integrity and stability of the aluminum formwork structure in the process of concrete pouring, and prevent the emergence of problems such as slurry leakage and mold rising.



    2. Adjustment of formwork position

    Fine-tune the template position through its taper characteristics to ensure accurate dimensions of walls, columns and other structures.



    3. Scaffolding works

    It is used as a connecting piece between the uprights and crossbars of scaffolding to enhance the stability and load-bearing capacity of scaffolding.



    4. Pipe fixing and protection

    It is used to fix and protect the water and electricity pipes in the building, so that the pipes are neatly arranged and prevented from shifting.

    • Tapered Casing Applications
    • Tapered Casing Applications
    • Tapered Casing Applications
    • Tapered Casing Applications
    • Tapered Casing Applications
    • Wall effect after tapered casing removal
    • Wall effect after tapered casing removal
    Customization options
    • Tapered Casing
    • Tapered Casing
    • Tapered Casing

    This tapered casing provides customized services, including color, size, cutting, welding, and carving. Users can customize according to their specific requirements.

    DOWNLOADS
    • Q&A
      Q
      Does the installation of plastic sleeves require professional tools?

      Tapered Casing installation can be completed manually without the need for complex tools, and is equipped with professional pipe removal tools for simple and efficient operation.

      Q
      Can your plastic accessories be reused?

      Yes, our tapered casing can be reused multiple times. By proper maintenance and storage, they can be cleaned and reinstalled in subsequent projects, reducing material waste and costs.

      Q
      Can you customize the mold for your casing?

      Yes, we have a professional mold design and manufacturing team that can provide customized mold opening services according to customers’ special needs.

      Q
      Do you provide samples?

      We can provide samples for you to test. You only need to inform us of the required quantity and pay for the sample and shipping fees.

      Q
      Are your plastic accessories compatible with template systems from other brands?

      Adopting standardized taper design, compatible with mainstream aluminum mold systems, with strong universality.
