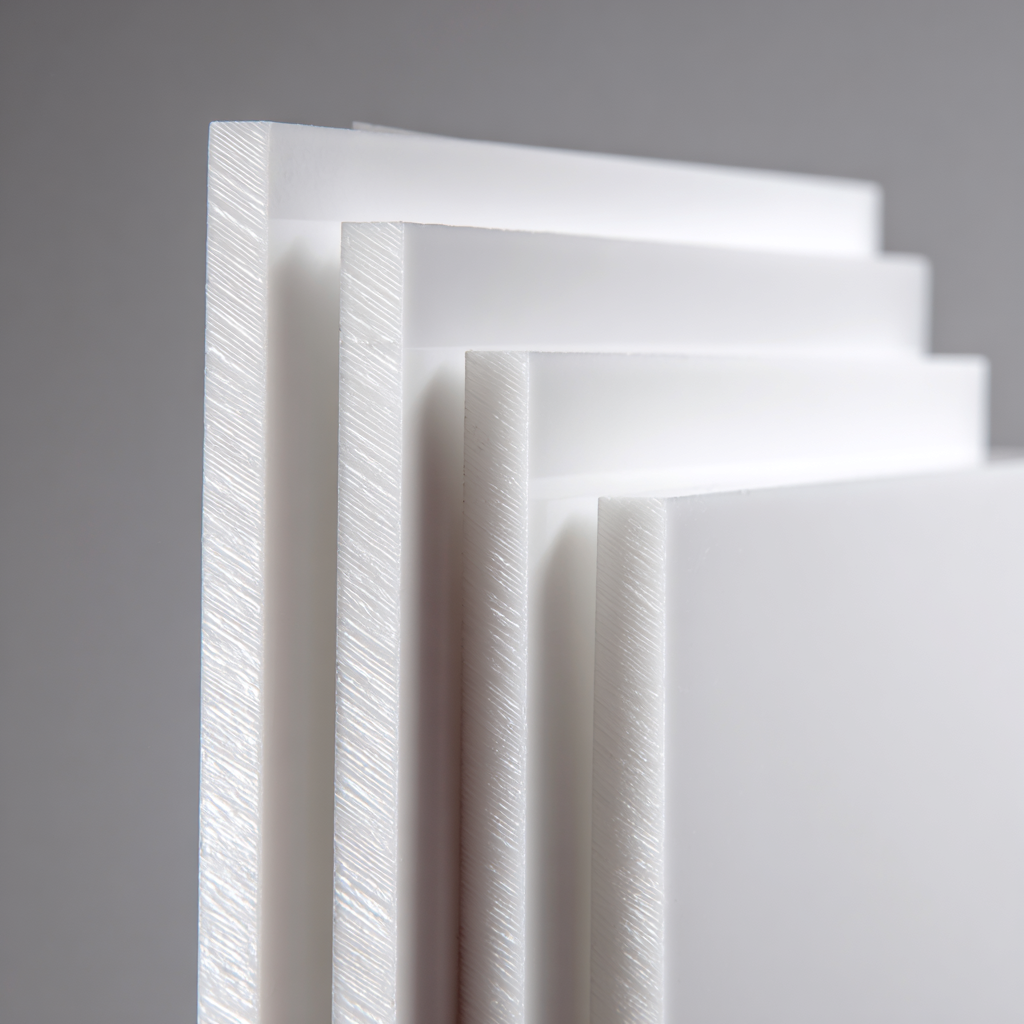

High Wear-Resistance & Low-Friction Engineering Plastic

Uhmwpe Sheet(UPE)

FEATURES

1.Excellent Chemical Resistance – Resistant to acids, alkalis, and many organic solvents; ideal for chemical processing, storage, and industrial applications.

2.High Impact Strength – Despite being lightweight, UPE offers outstanding toughness and impact resistance under heavy mechanical stress.

3.Lightweight with High Durability – Low density ensures easy handling and reduced transportation costs without compromising strength.

4.Good Heat Resistance – Maintains mechanical properties up to around 100 °C; suitable for hot water and steam cleaning.

5.Low Moisture Absorption – Ensures dimensional stability in humid or wet environments.

6.Excellent Weldability & Machinability – Easy to fabricate, cut, and weld into custom shapes, tanks, or components.

7.Non-Toxic & Food-Safe – Available in grades approved for hygienic and food-contact applications.

8.Cost-Effective – Combines high durability and chemical resistance at a competitive price compared with other engineering plastics.

inquiry

Specifications

Brand Name	Grade	Material	Density (g/cm³)	Color	Standard Size	Width (mm)	Length (mm)	Thickness (mm)	Mechanical Properties	Thermal Properties	Flexural Strength (MPa)	Chemical Resistance	Moisture Absorption (%)	Fabrication Options	Packaging	VST (°C)	TS (MPa)	IS (kJ/m²)	H (Shore D)	MOQ
NMT-UPE-Sheet-1000	General Purpose	Ultra-High Molecular Weight Polyethylene	0.94–0.97	Natural / White / Black / Custom	Standard Sheet	1000–2000	2000–6000	5–100	High toughness, excellent impact and wear resistance	Continuous use up to 80–100 °C	20–35	Excellent, resistant to acids, alkalis, and solvents	<0.01	CNC machining, welding, cutting, thermoforming	Protective film + pallet	~80	25–30	50–70	65–70	500 kg
NMT-UPE-Sheet-2000	Food Grade	Ultra-High Molecular Weight Polyethylene	0.95	White	Standard Sheet	1000–1500	2000–3000	5–50	High toughness, non-toxic, hygienic	Continuous use up to 80 °C	22–32	Excellent chemical resistance, food safe	<0.01	CNC machining, welding, thermoforming, custom tanks	Wrapped & palletized	~80	25	50–60	67	500 kg
NMT-UPE-Sheet-3000	Wear-Resistant	Ultra-High Molecular Weight Polyethylene	0.96	Black / Grey	Standard Sheet	1200–2000	2400–6000	10–80	Extremely high abrasion resistance, heavy-duty applications	Continuous use up to 80 °C	25–38	Excellent, resists chemical corrosion	<0.01	CNC machining, cutting, welding, thermoforming	Protective film + pallet	~80	28	55–75	68	500 kg
NMT-UPE-Sheet-4000	High Strength	Ultra-High Molecular Weight Polyethylene	0.95–0.97	Natural / Blue	Standard Sheet	1000–1800	2000–5000	8–100	Ultra-high impact strength, suitable for mechanical parts	Continuous use up to 90 °C	28–40	Excellent, acids, alkalis, solvents	<0.01	CNC machining, welding, cutting, bending	Wrapped & palletized	~85	30	60–80	70	500 kg
NMT-UPE-Sheet-5000	Anti-Static	Ultra-High Molecular Weight Polyethylene	0.95	Grey / Black	Standard Sheet	1000–1500	2000–4000	5–50	High impact, anti-static properties, wear-resistant	Continuous use up to 80 °C	22–35	Excellent, chemical resistant	<0.01	CNC machining, welding, thermoforming, custom parts	Protective film + pallet	~80	25–30	50–70	65	500 kg

Applications

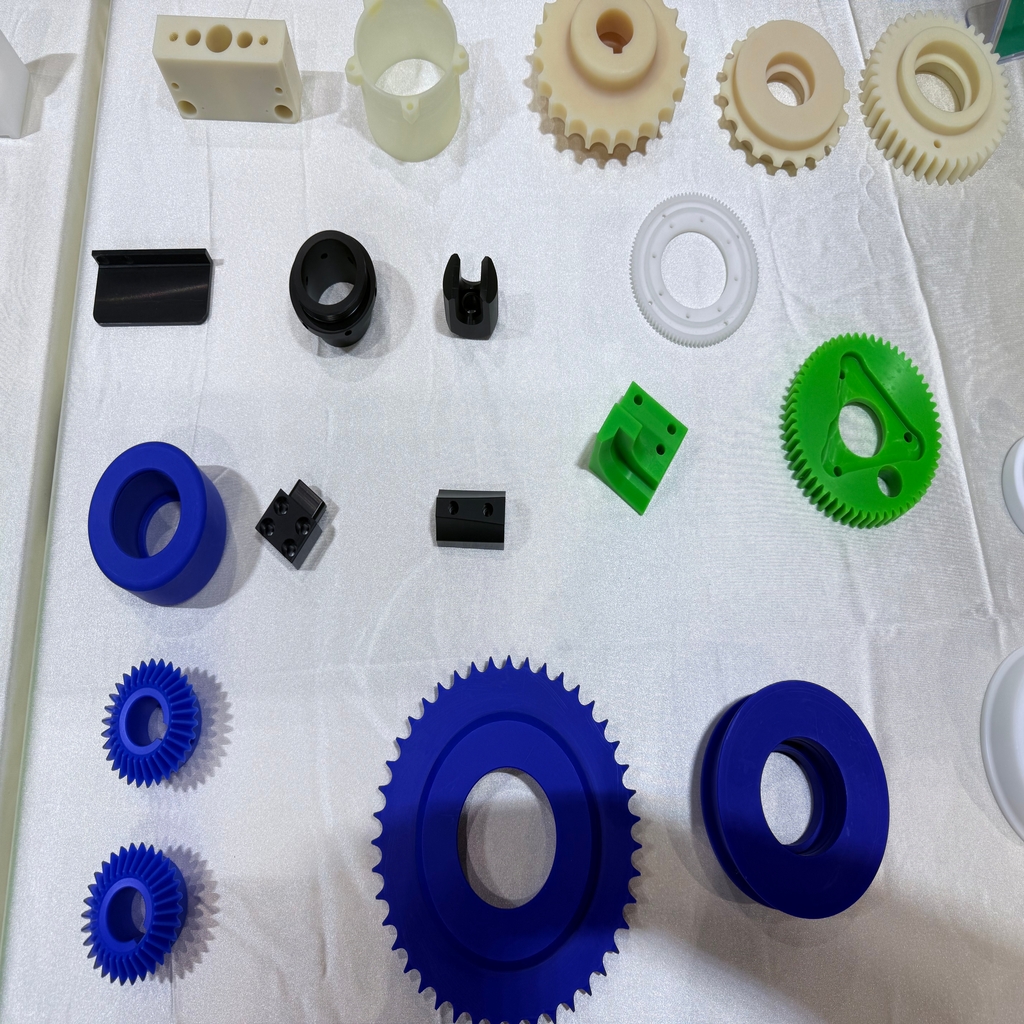

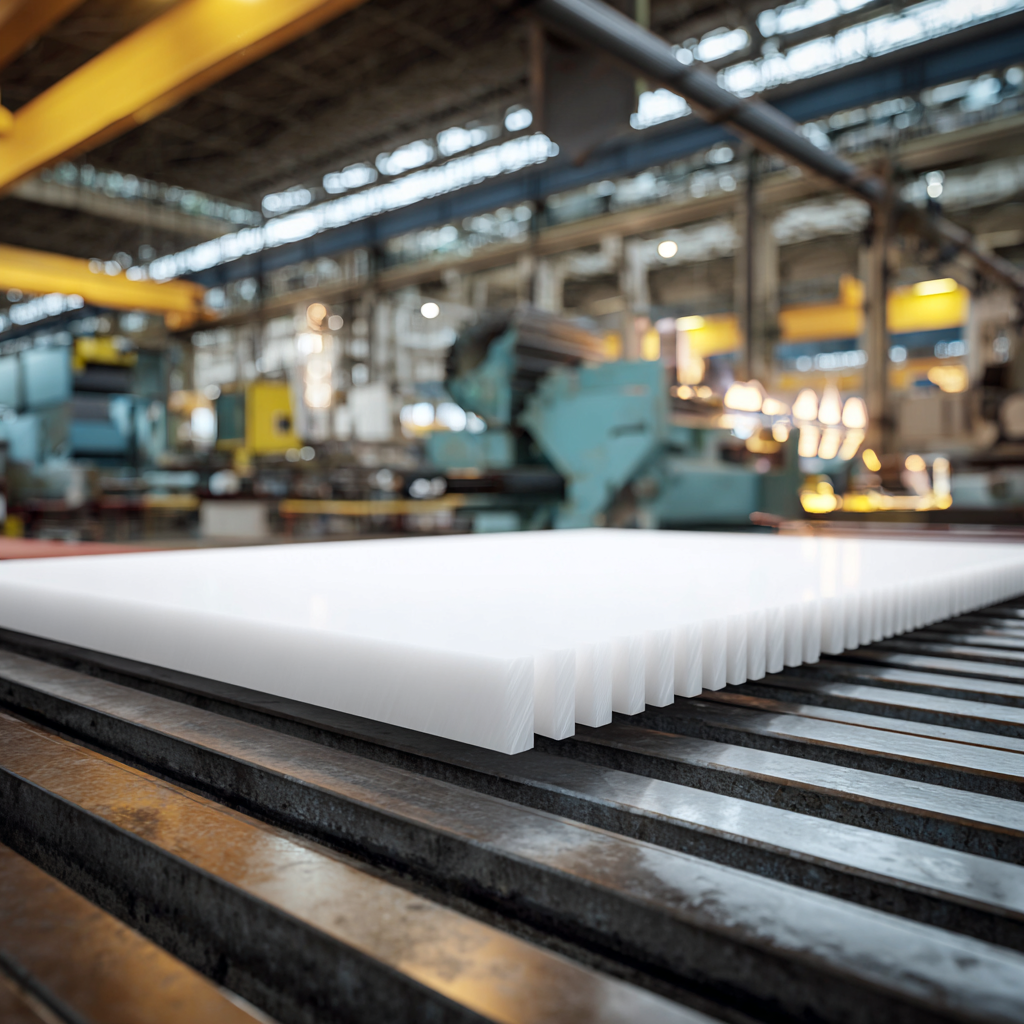

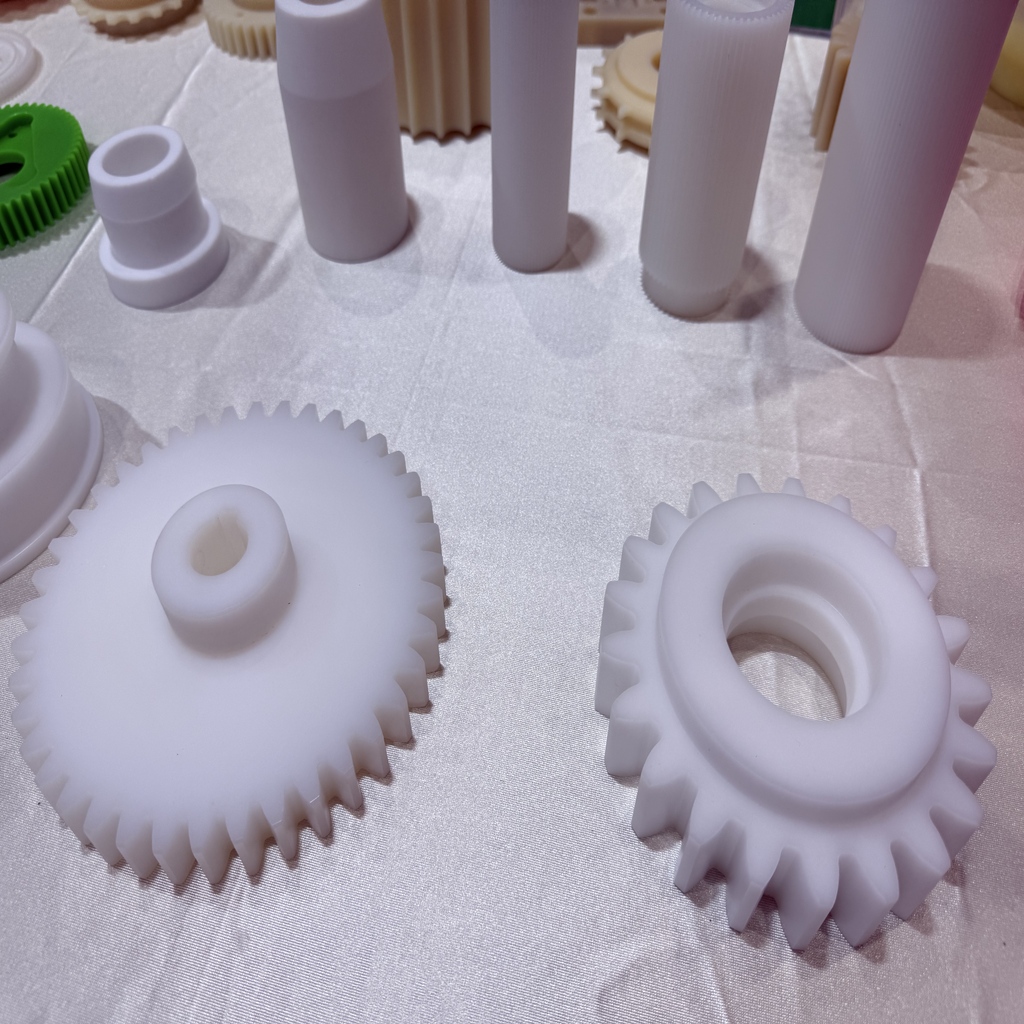

1.Industrial: Machined into gears, bearings, rollers, and conveyor components with excellent load-bearing and low-friction performance.

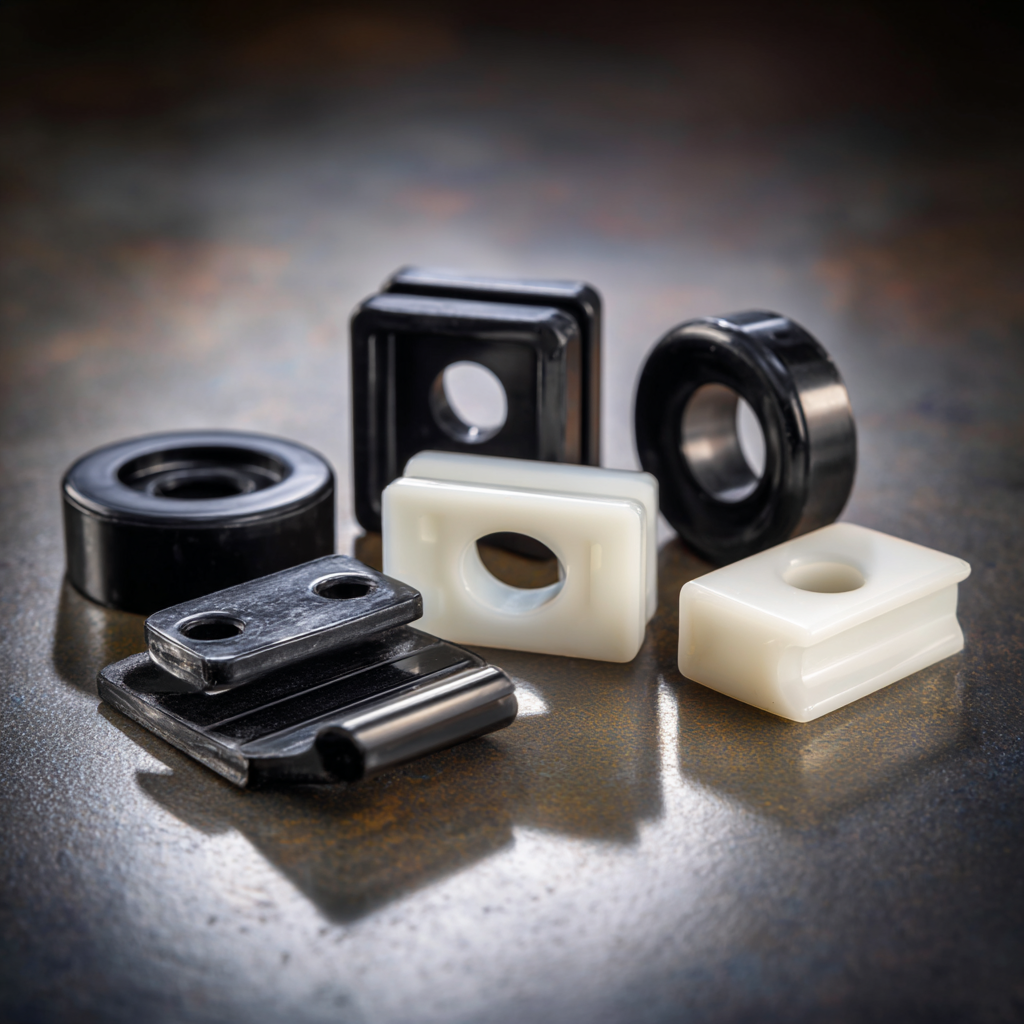

2.Automotive: Used for bushings, clips, brackets, and under-hood parts, providing heat resistance and durability.

3.Electrical: Fabricated into insulating parts, connectors, and housings due to stable dimensions and electrical insulation.

4.Food & Packaging: FDA-compliant grades suitable for cutting boards, guides, and rollers, ensuring hygiene and safety.

Customization options

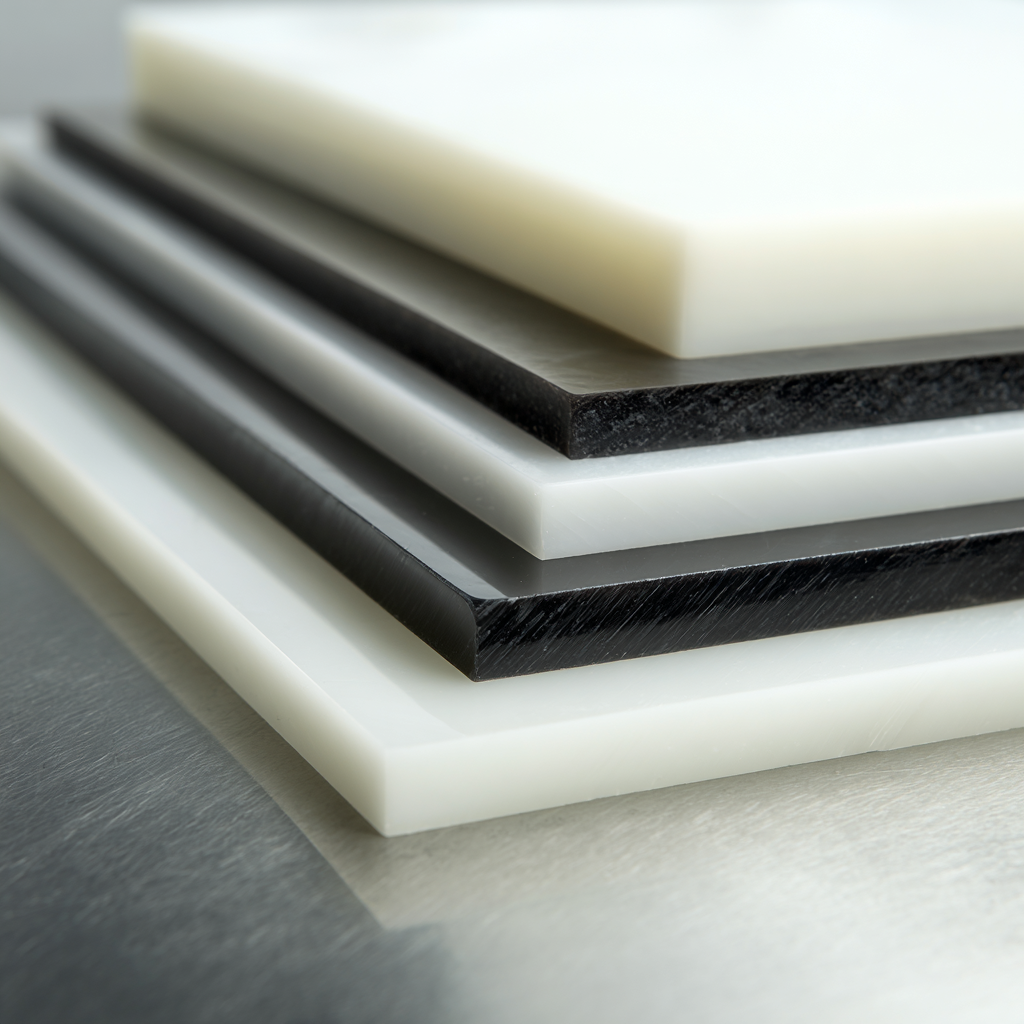

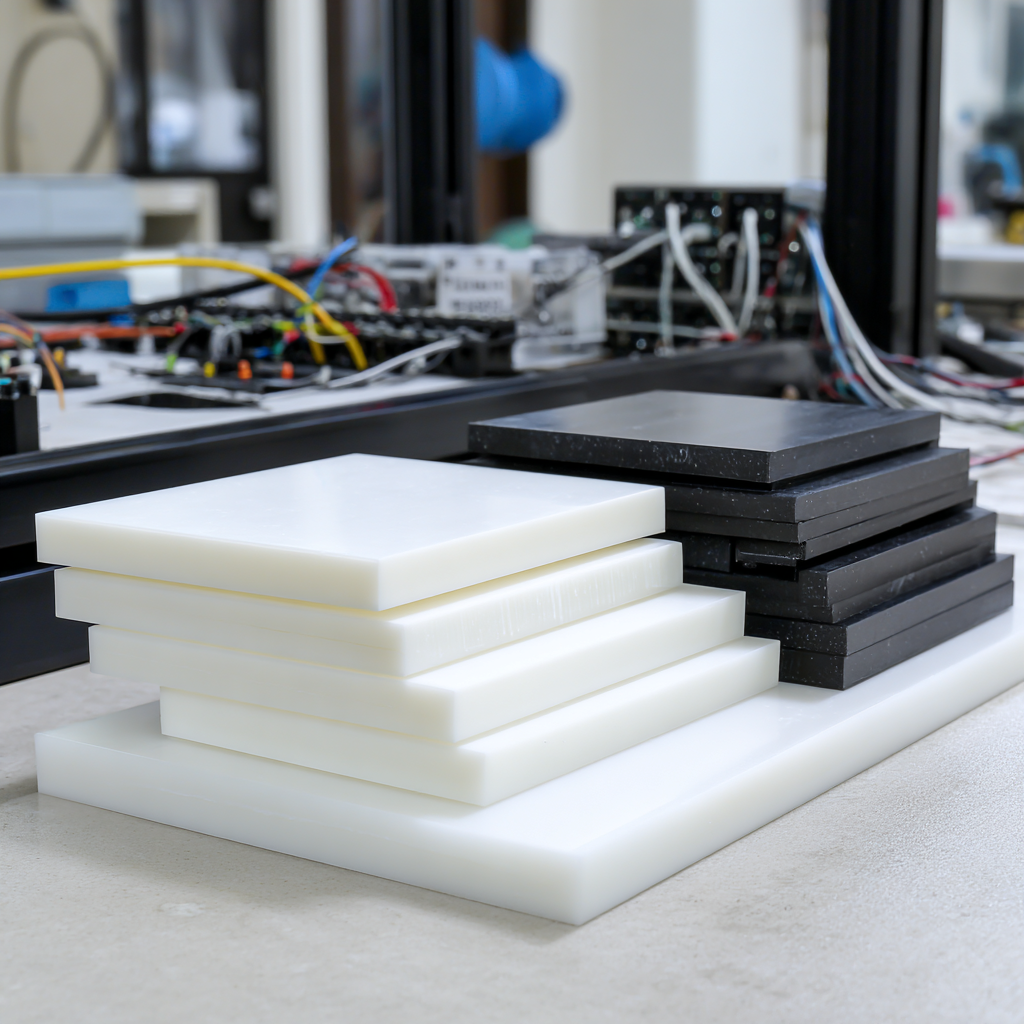

1.Dimensions – UPE sheets can be cut-to-size with customized length, width, and thickness to meet your project requirements, from thin liners to thick structural sheets.

2.Colors – Standard colors include black and white, with custom color matching available upon request.

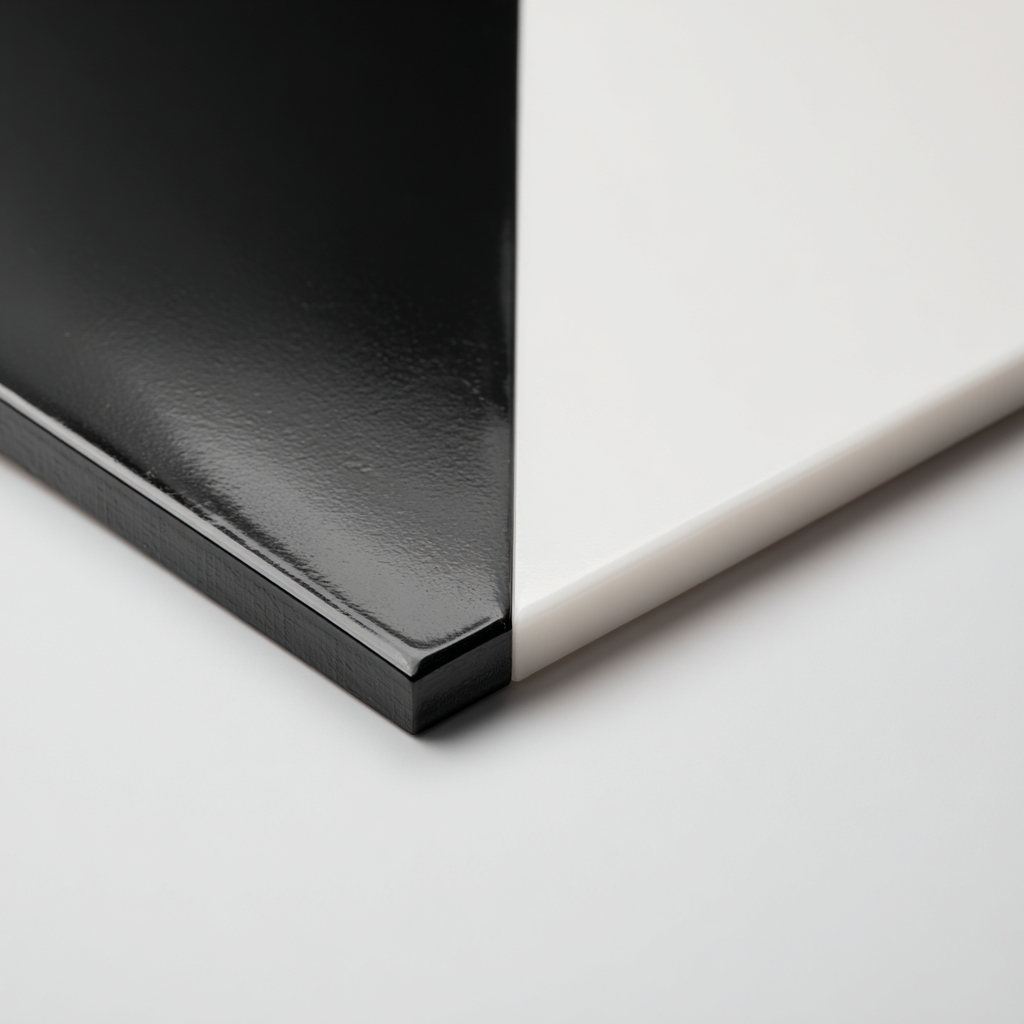

3.Surface Finish – Choose from smooth, matte, or polished surfaces depending on functional or aesthetic needs, with edges clearly defined to highlight sheet thickness.

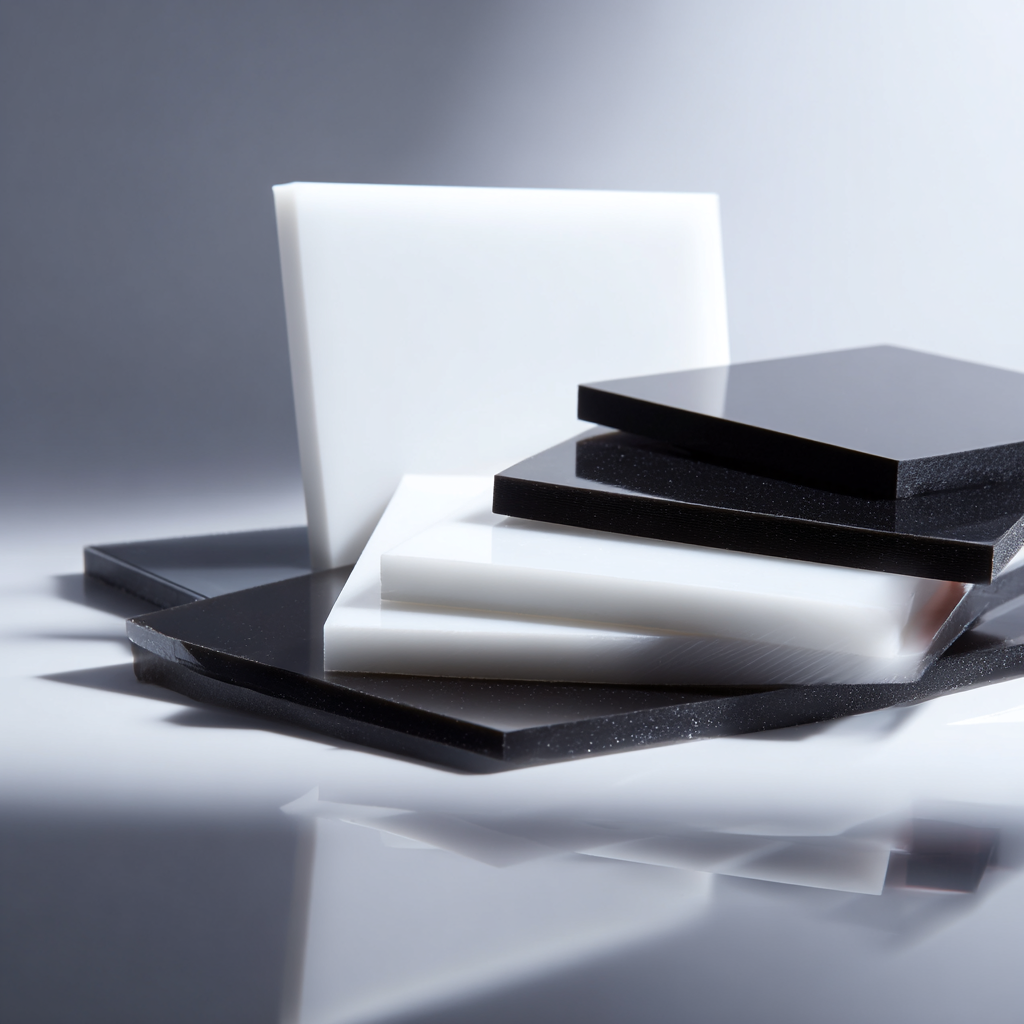

4.Grades & Additives – Standard UPE sheets, UV-stabilized, reinforced, antistatic, or FDA-compliant food-grade sheets are available depending on your application.

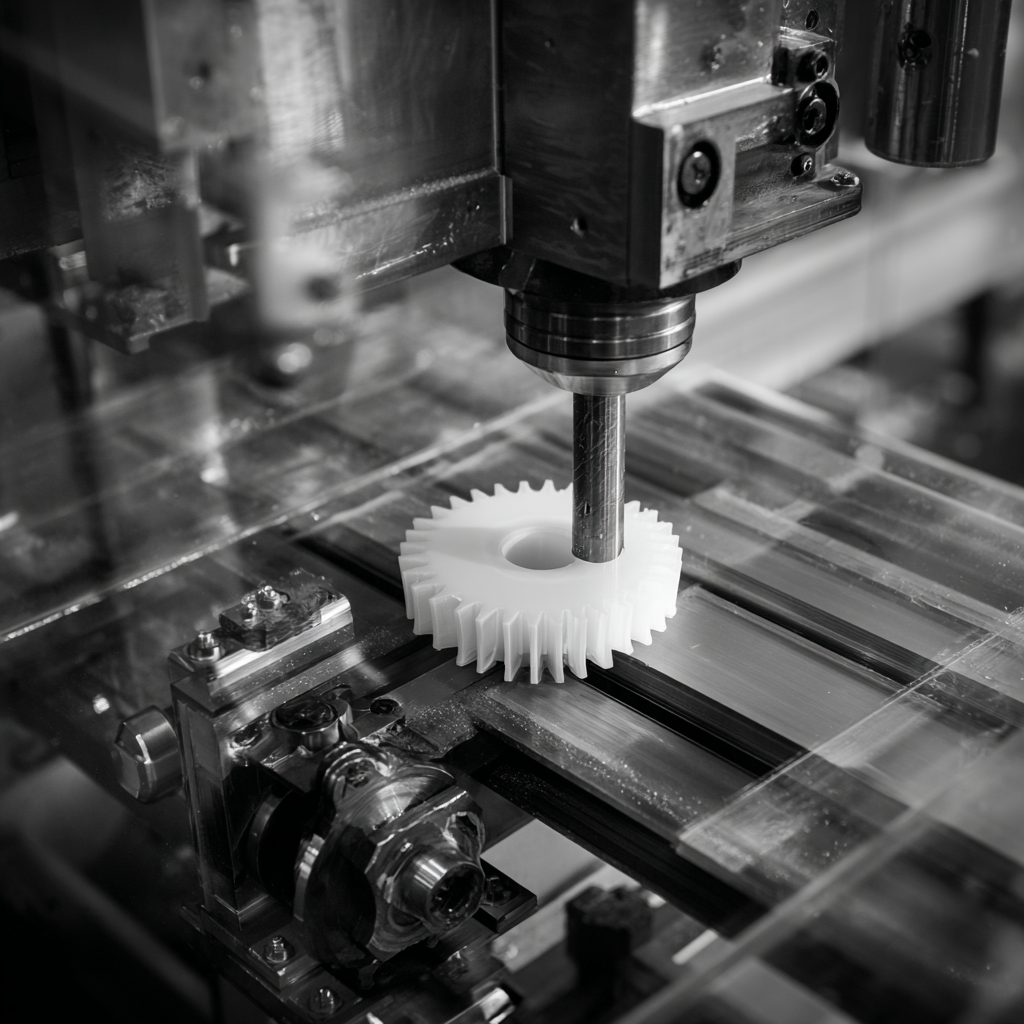

5.Fabrication Services – We provide CNC cutting, milling, drilling, welding, bending, and thermoforming, allowing UPE sheets to be fabricated into gears, rollers, bushings, cutting boards, or custom components.

6.Edge Treatment & Branding – Options include deburred edges, rounded corners, or screen/UV printing for branding, part labeling, or signage purposes.

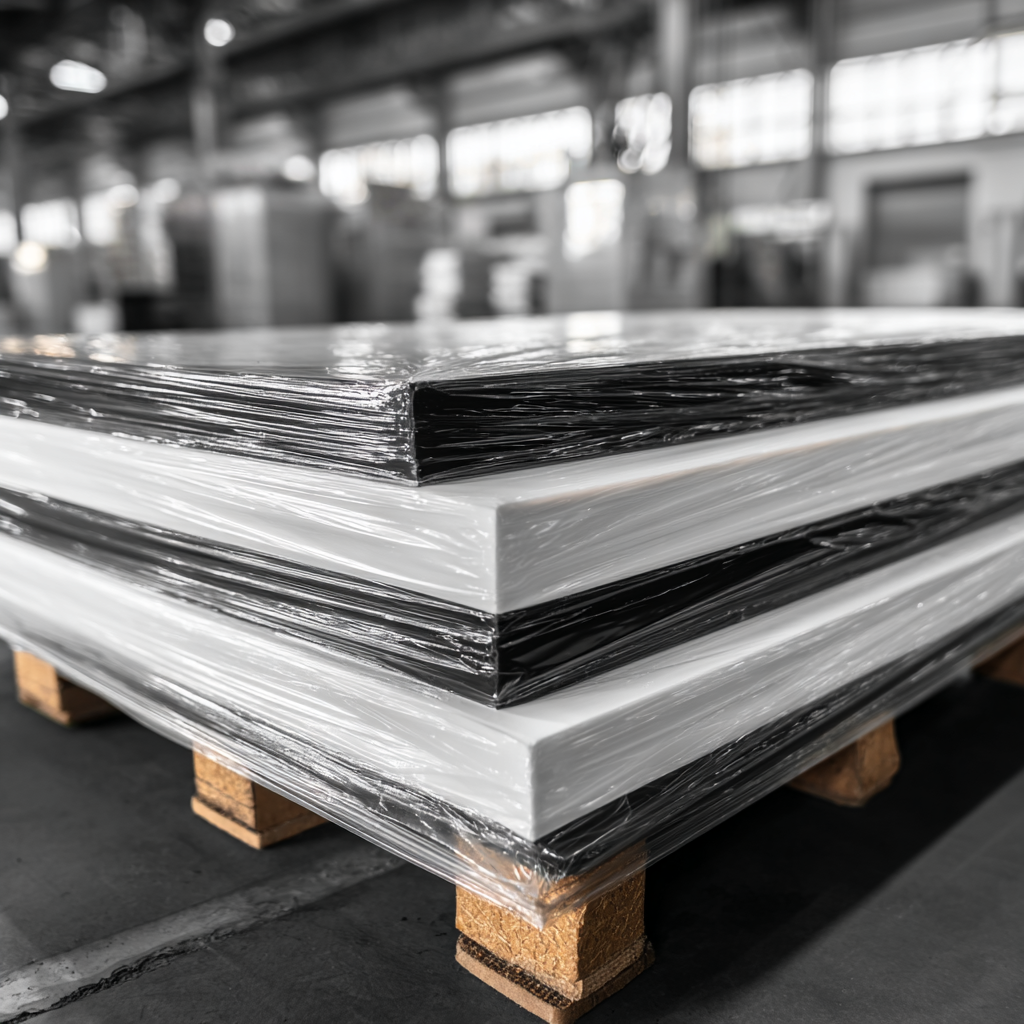

7.Packaging & Delivery – Tailored packaging solutions such as pallets, film wrap, or cartons are available, along with flexible delivery options to accommodate bulk or customized orders.

DOWNLOADS

Q&A

Q

What is UHMWPE (UPE) and what makes it different from other plastics?

UHMWPE (Ultra High Molecular Weight Polyethylene, UPE) is a high-performance engineering plastic with exceptional wear resistance, low friction, and high impact strength. Compared to standard polyethylene or polypropylene, UPE has a much higher molecular weight, which gives it superior abrasion resistance, dimensional stability, and long service life. It is widely used as a replacement for metal in industrial and mechanical applications.

Q

What are the standard sizes, thicknesses, and colors available for UPE sheets?

Standard UPE sheets are available in thicknesses from 5 mm up to 200 mm, and can be cut to custom sizes according to project requirements. Typical sheet dimensions are 1000×2000 mm or 2000×3000 mm, but OEM customization is available. Colors include black and white by default, with other colors available on request.

Q

What is the operating temperature range for UPE sheets?

UPE sheets can typically withstand continuous operating temperatures from –200 °C to +80 °C, and short-term exposure up to +90 °C. UPE retains its mechanical strength and wear resistance over a wide temperature range, making it suitable for industrial, automotive, and food-processing environments.

Q

Can UPE sheets be machined or fabricated?

Yes, UPE sheets are easy to machine, cut, drill, mill, and weld. They can be fabricated into custom components such as gears, rollers, bushings, conveyor guides, cutting boards, and insulating parts. However, due to their toughness, specialized cutting tools and slower feed rates are recommended to achieve a clean finish.

Q

Is UPE safe for food contact?

FDA-compliant grades of UPE are available, making it safe for direct contact with food. Common food-industry applications include cutting boards, guides, rollers, and conveyor components. UPE is non-toxic, chemical-resistant, and easy to clean, ensuring hygiene and durability.

Q

What are the main advantages of using UPE sheets?

1.Extremely low friction and self-lubricating – reduces wear in sliding applications

2.Outstanding abrasion and impact resistance – lasts much longer than conventional plastics

3.Chemical and corrosion resistant – suitable for harsh industrial environments

4.Lightweight yet strong – reduces overall system weight while maintaining strength

5.Customizable – can be cut, machined, and fabricated to project requirements

Q

What industries commonly use UPE sheets?

1.Industrial: gears, bearings, rollers, conveyor components

2.Automotive: bushings, clips, brackets, under-hood parts

3.Electrical: insulating components, housings, connectors

4.Food & Packaging: cutting boards, conveyor guides, rollers
